Fathom E+ 1 2027
Amber Glow / S
€3.599,00
Skip to product information

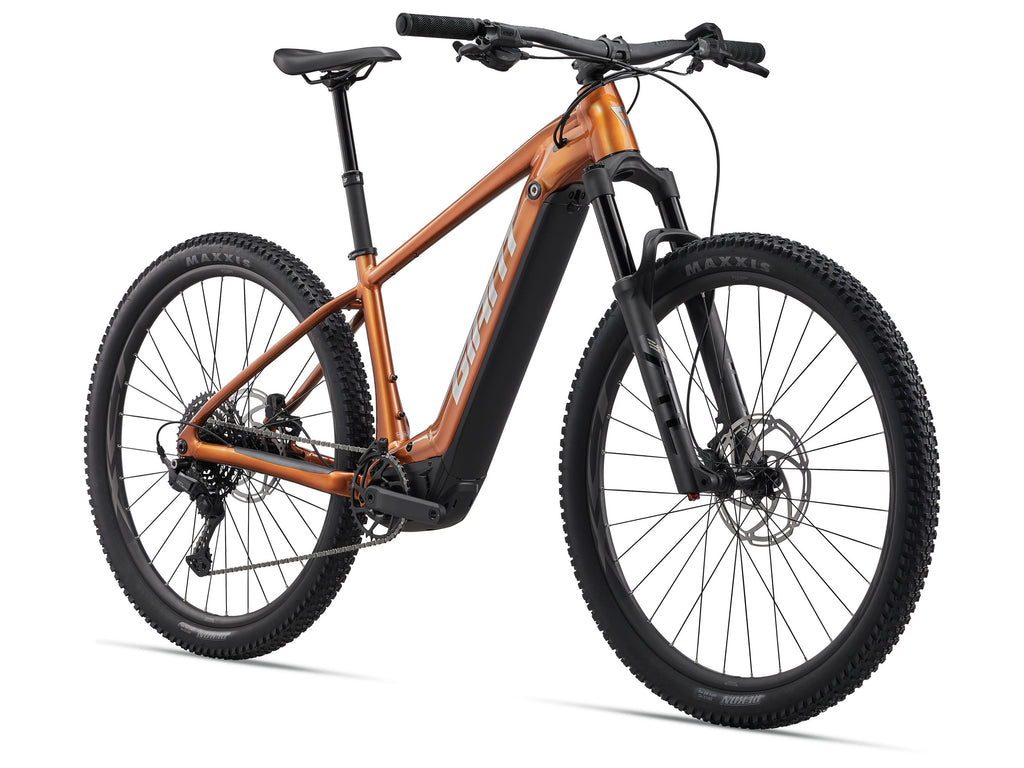

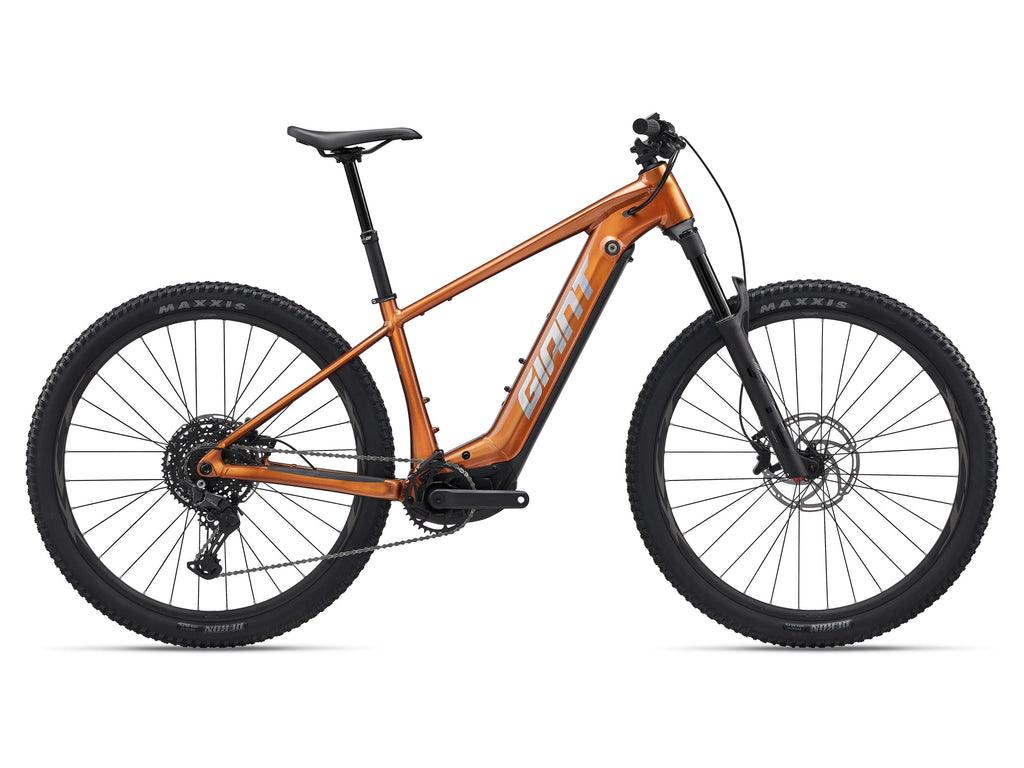

Giant Fathom E+ 1 2027
€3.599,00
Taxes included.
Product description
Giant Fathom E+ 1 2027 is an electric mountain bike. It features a aluminium frame. Hydraulic disc brakes are fitted. The drivetrain uses a 1 x 10 configuration. The electric system includes a 800 Wh battery. Choose from the listed sizes and colours at Scanlon Cycles.
Specifications

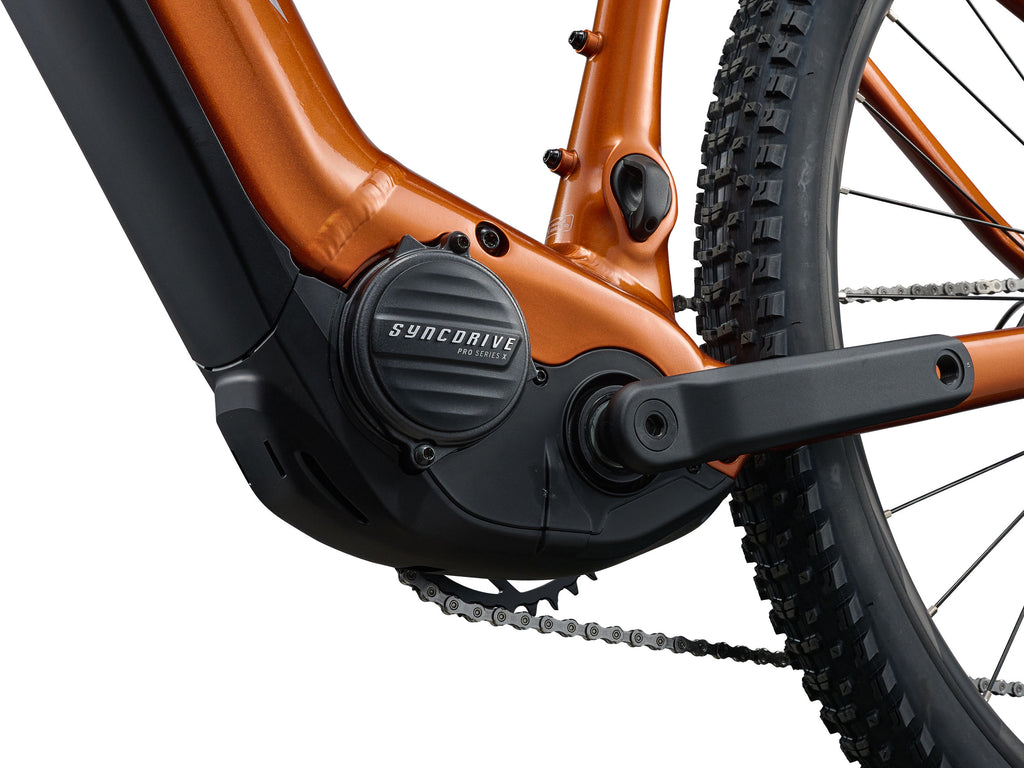

| Motor | Giant SyncDrive Pro 3X 100Nm, PedalPlus 6-Sensor technology |
|---|---|
| Controller | Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels |
| Display | Giant RideControl Dash 2, high-angle visibility, full color LCD display |
| Battery | Giant EnergyPak Smart 800Wh |
| Charger | Giant EnergyPak smart charger 4A |
| Connectivity | Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile |
| Frame | ALUXX-grade aluminium, OverDrive, 148x12mm thru-axle, integrated KSA40 kickstand mount |

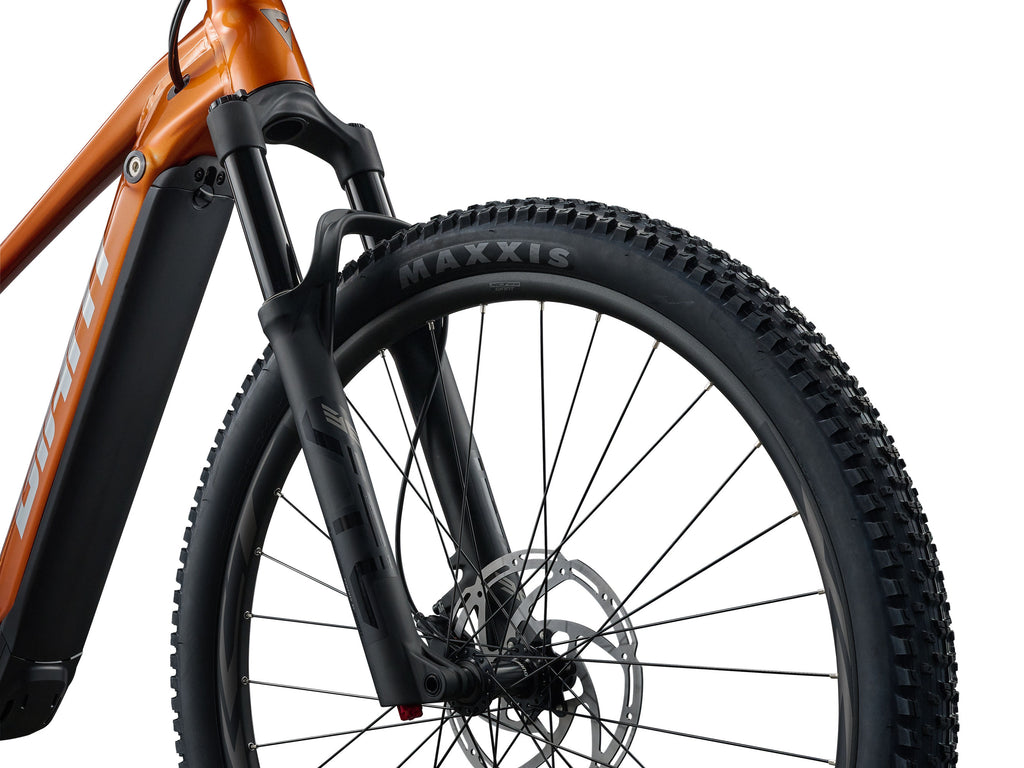

| Fork | Giant STL 36 Air, 130mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible |
| Handlebar | Giant Connect TR Riser 31.8x760mm [S], 780mm [M-XXL] |
| Grips | Giant Sole-O |
| Stem | Giant Contact SL |

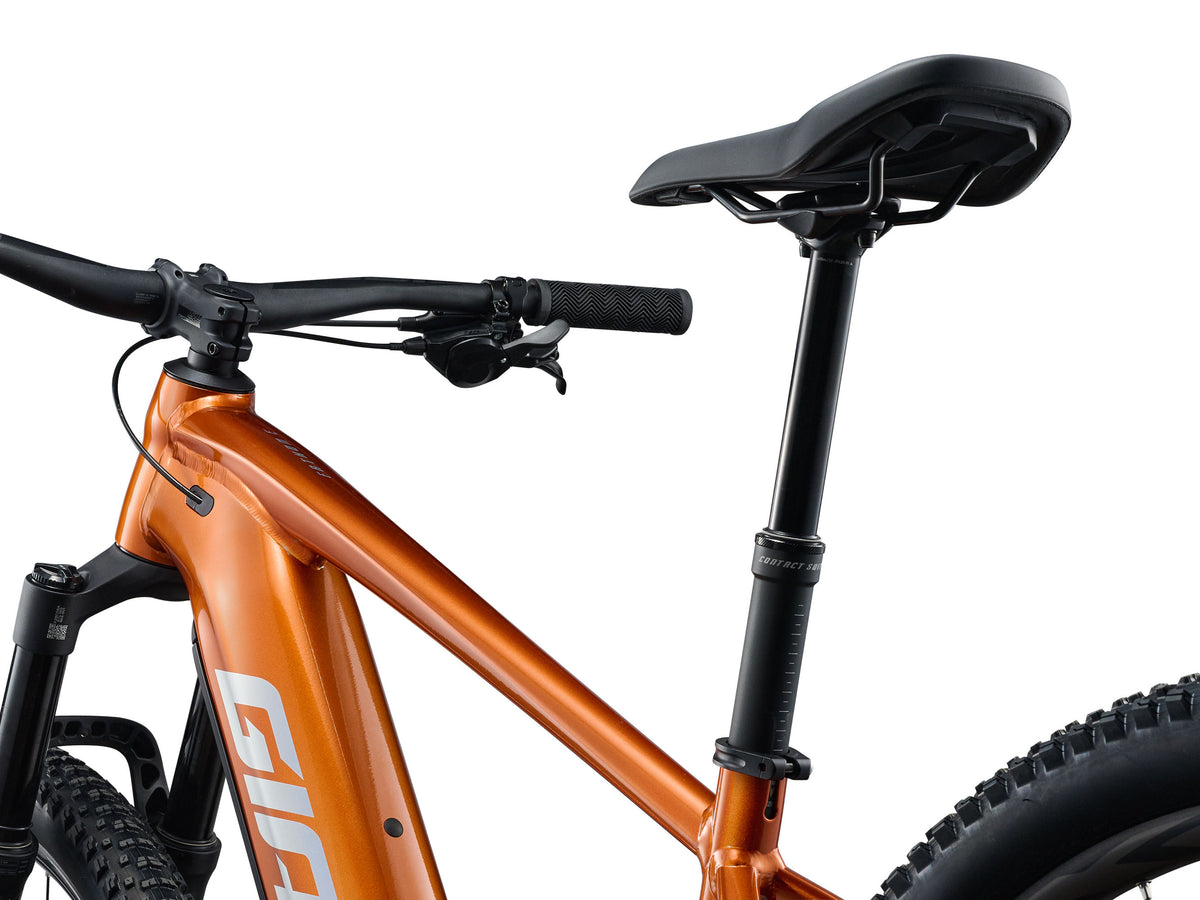

| Seatpost | Giant Contact Switch AT dropper seatpost, 100mm travel |
| Saddle | Giant Ergo Contact Trail |
| Pedals | Anti-slip Platform |
| Shifters | Shimano Cues |

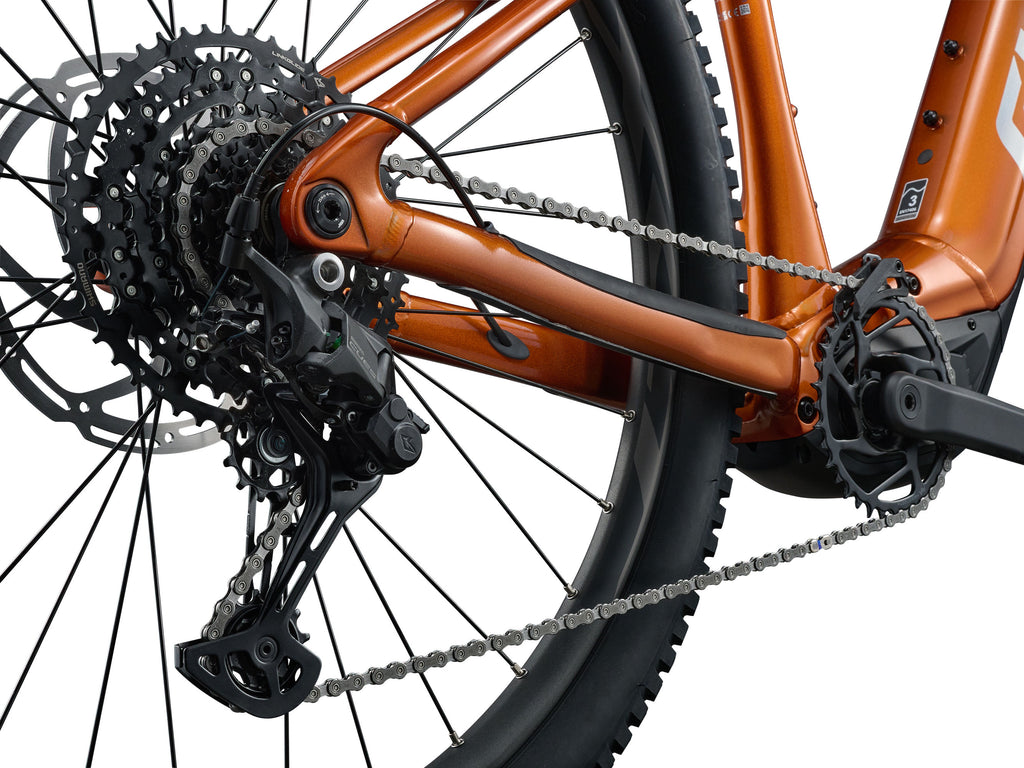

| Rear Derailleur | Shimano Cues, LinkGlide 10-speed Shadow+ |
| Brakes | Tektra Orion, hydraulic disc |
| Brake Levers | Tektra Orion |
| Cassette | Shimano Cues11-48T 10-speed |
| Chain | Shimano Cues, Linkglide CN-LG500 |
| Crankset | Forged alluminum direct-mount chainring steel 36T, Forged alumium crank arms |
| Rims | Giant XCT 29 Tubeless Ready 25mm e-bike optimized |
| Hubs | Shimano TC500, Boost, Center-Lock, 15x110mm[F] 12x148mm[R] |
| Spokes | Stainless steel |
| Tyres | Maxxis Rekon 29x2.4", EXO, 60TPI |
| Lock | ABUS Xplus battery lock |
| Sizes | S, M, L, XL, XXL |
| Colours | Amber Glow, Cryo Silver |
| Drivetrain configuration | 1 x 10 |
| Wheel size for these variants | 29 |
Geometry
| Measurement | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Seat Tube Length (mm) | 380 | 420 | 460 | 495 | 530 |
| Seat Tube Angle (degrees) | 75.0° | 75.0° | 75.0° | 75.0° | 75.0° |
| Top Tube Length (mm) | 590 | 610 | 630 | 650 | 670 |
| Head Tube Length (mm) | 110 | 120 | 130 | 140 | 150 |
| Head Tube Angle (degrees) | 66.0° | 66.0° | 66.0° | 66.0° | 66.0° |
| Fork Rake (mm) | 51 | 51 | 51 | 51 | 51 |
| Trail (mm) | 113.5 | 113.5 | 113.5 | 113.5 | 113.5 |
| Wheelbase (mm) | 1197 | 1219 | 1241 | 1262 | 1284 |
| Chain Stay Length (mm) | 470 | 470 | 470 | 470 | 470 |
| Bottom Bracket Drop (mm) | 65 | 65 | 65 | 65 | 65 |
| Stack (mm) | 647 | 656 | 665 | 674 | 684 |
| Reach (mm) | 416 | 434 | 451 | 469 | 486 |
| Stand Over Height (mm) | 730 | 757 | 750 | 773 | 776 |
| Handlebar Width (mm) | 750 | 750 | 780 | 780 | 780 |
| Stem Length (mm) | 50 | 50 | 50 | 50 | 50 |
| Wheel Size | 29" | 29" | 29" | 29" | 29" |
Measurements are in millimetres unless indicated otherwise.
Component dimensions and wheel configurations can vary by frame size. Refer to the size annotations in the specifications. Manufacturer specifications may change; confirm your chosen size and colour before ordering.
Additional information
- Bike Type — eBike
- Rider — Unisex
- Frame Material — Aluminium
- Suspension — Hardtail
- Wheel Size — 29
- Brake Type — Hydraulic disc
- Motor — Giant
- Year — 2027
- Colour — S
