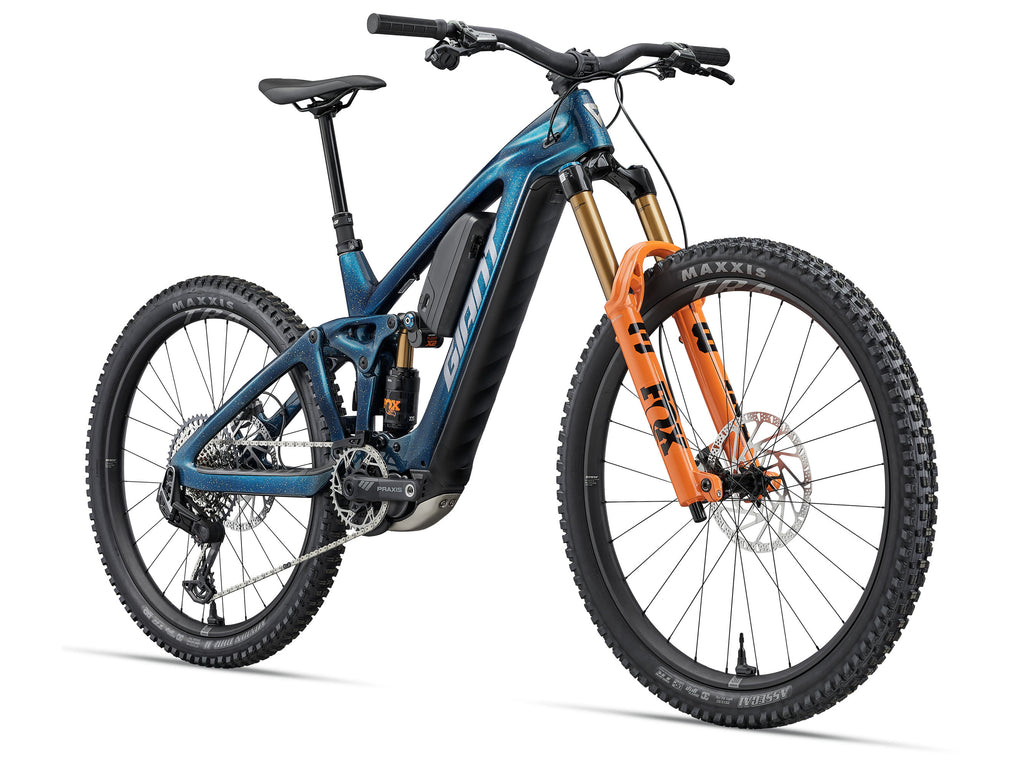

Giant Reign Advanced E+ 0 2027
€10.199,00
Taxes included.
Product description

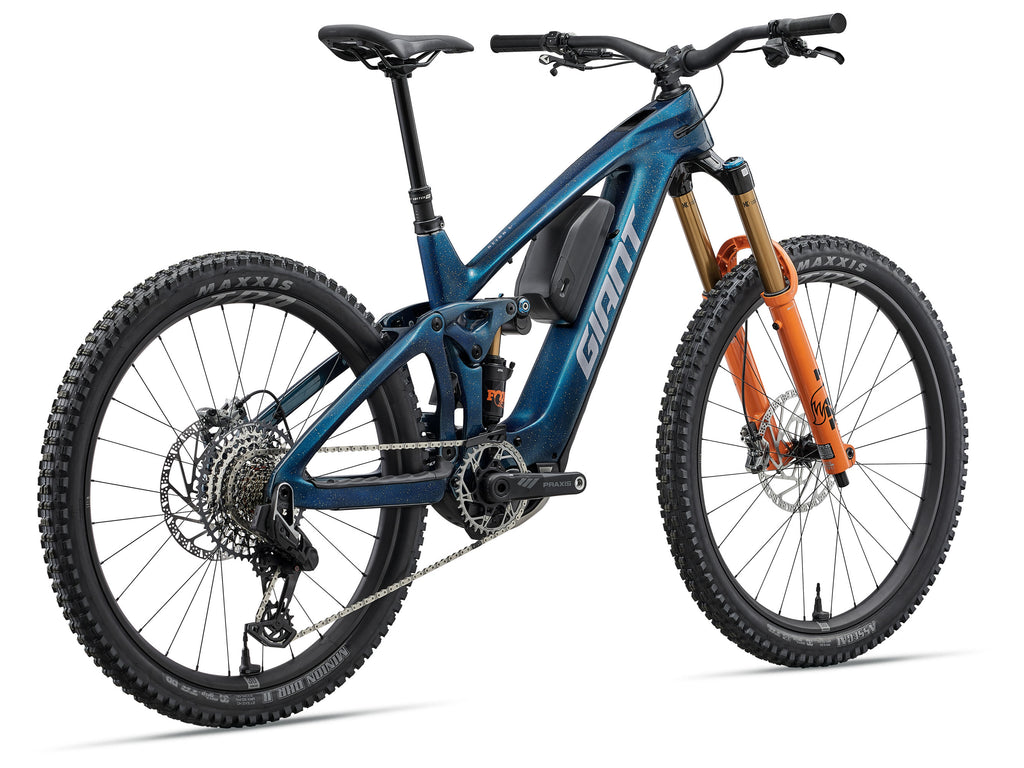

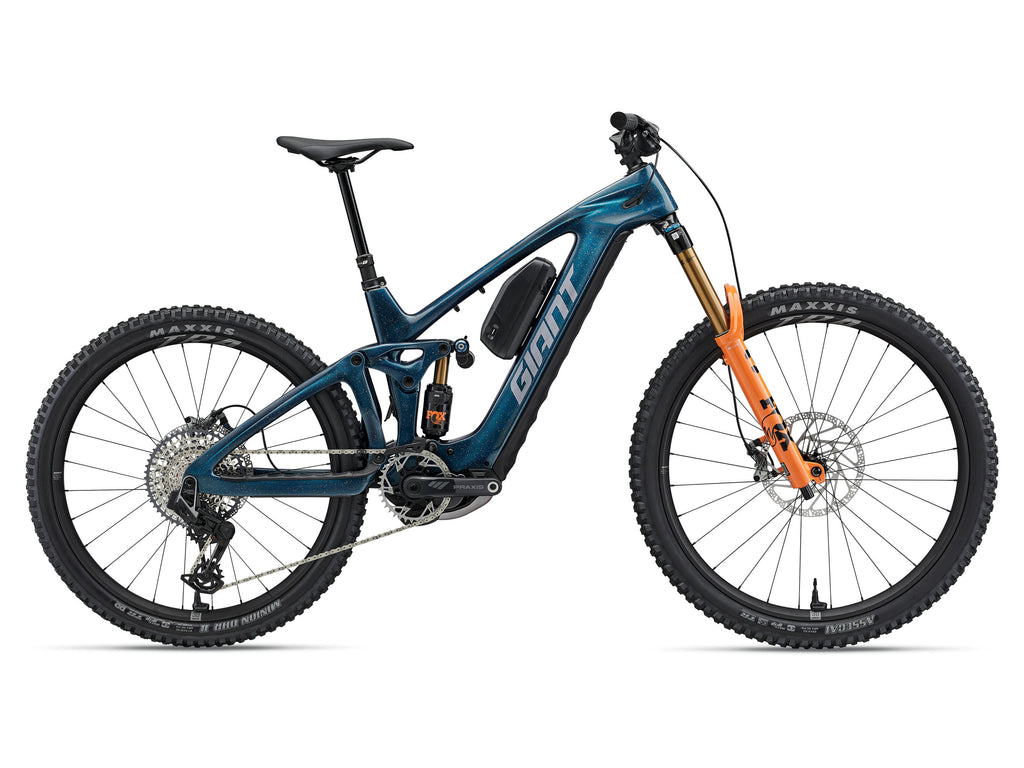

Giant Reign Advanced E+ 0 2027 is an electric mountain bike. It features a carbon frame. Hydraulic disc brakes are fitted. The drivetrain uses a 2 x 12 configuration. The electric system includes a 560 Wh battery. Choose from the listed sizes and colours at Scanlon Cycles.
Specifications

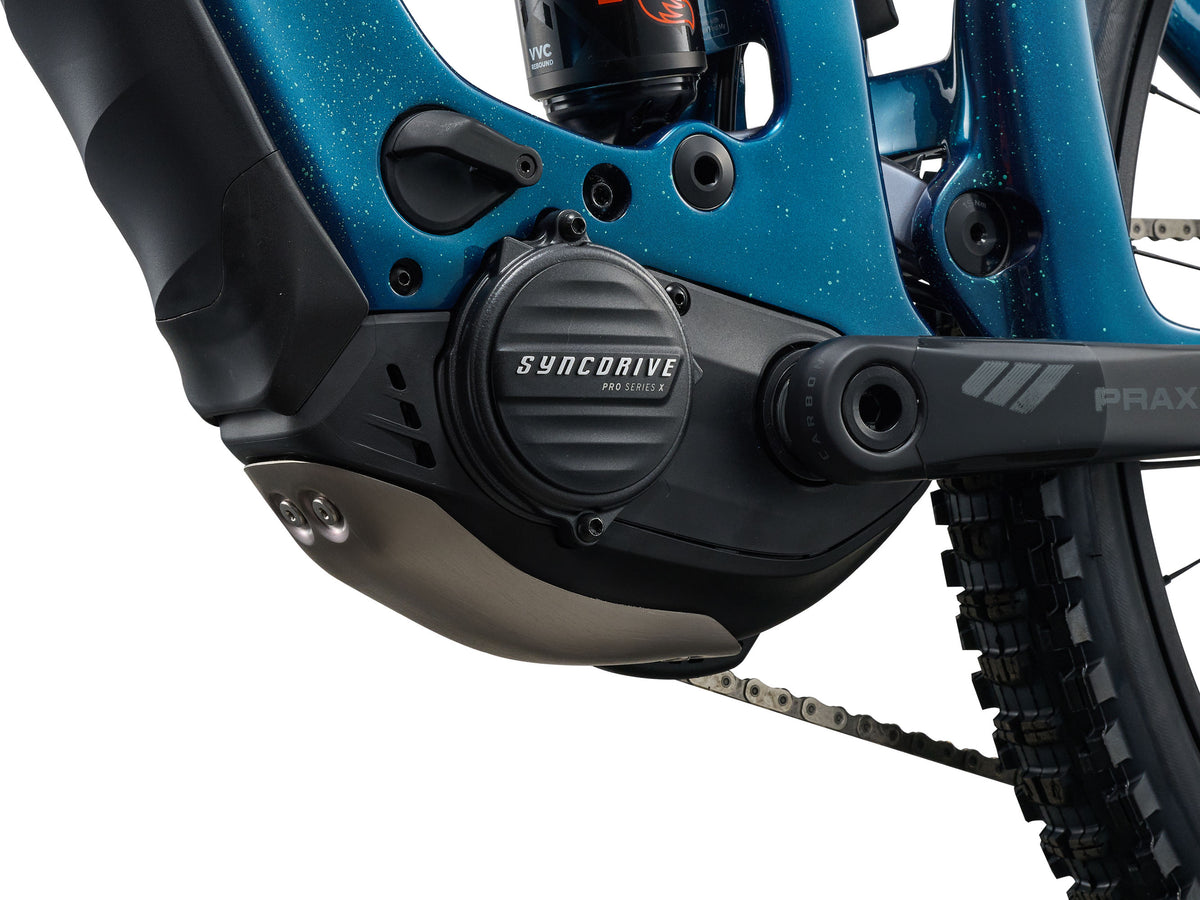

| Motor | Giant SyncDrive Pro3X,100Nm,48V 800W max power, 400% max support ratio |
|---|---|
| Controller | Giant RideControl Ergo 4 |

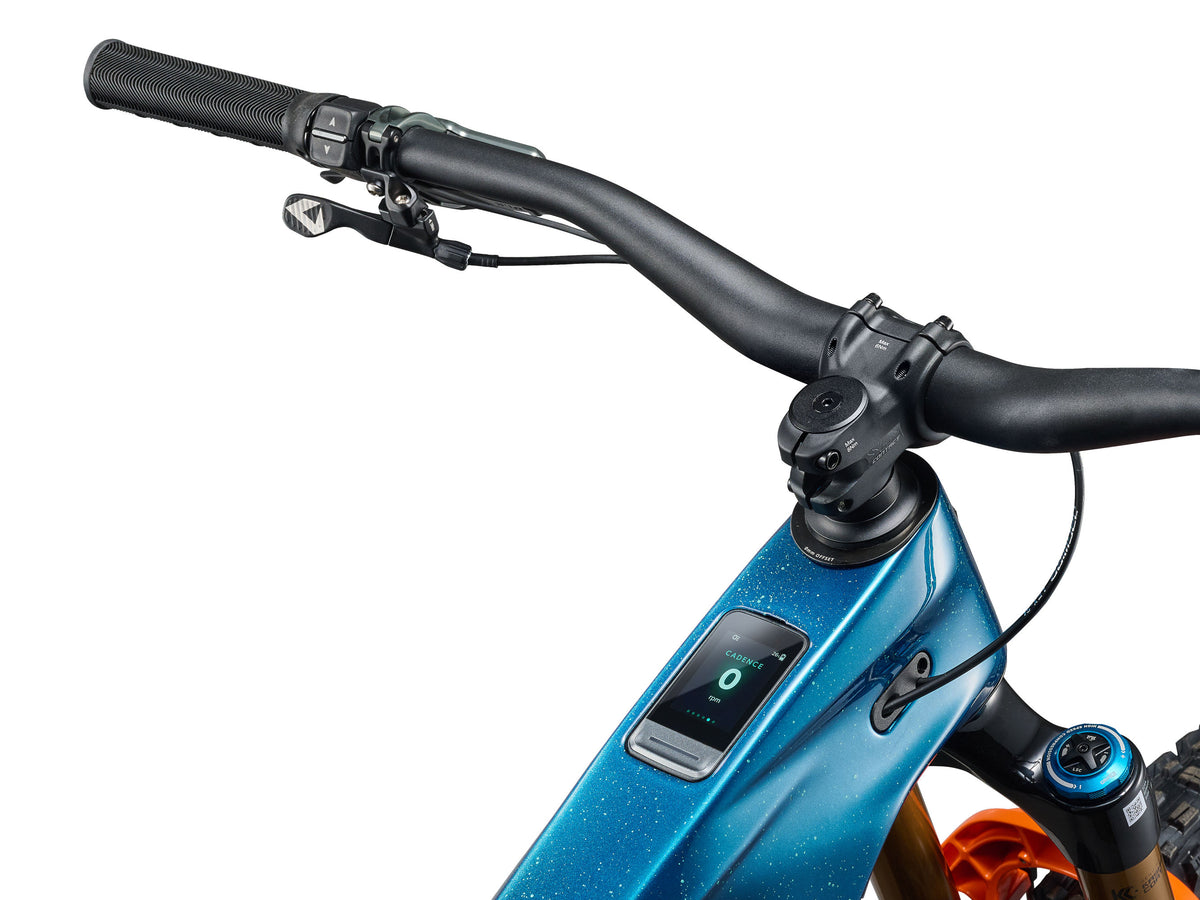

| Display | Giant RideControl Go Lux |

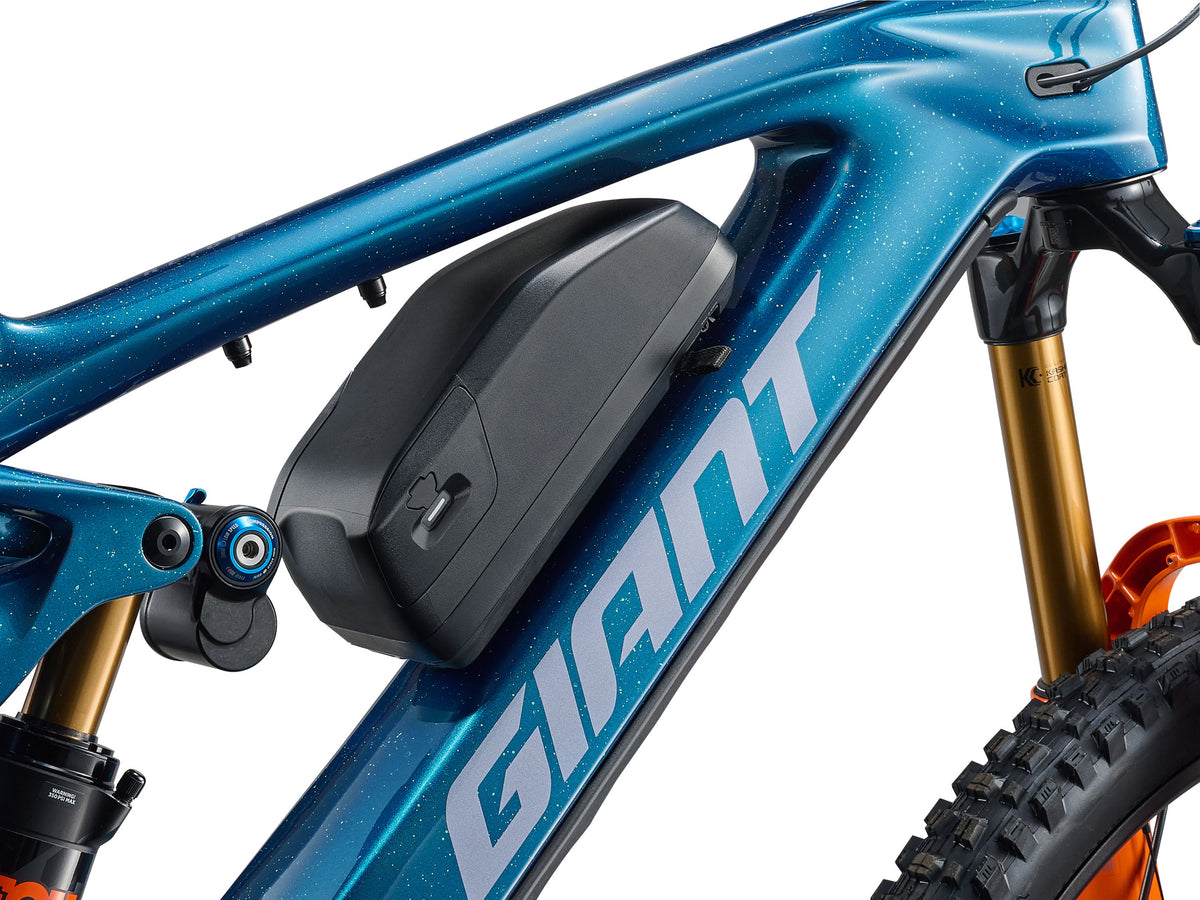

| Battery | iant EnergyPak Smart 560X, 560Wh, 48V Giant EnergyPak Plus 280Wh range extender |
| Charger | Giant EnergyPak 4A Charger, 48V |
| Frame | Advanced-grade composite frame, Advanced forged composite upper rocker, 170mm Maestro suspension system |

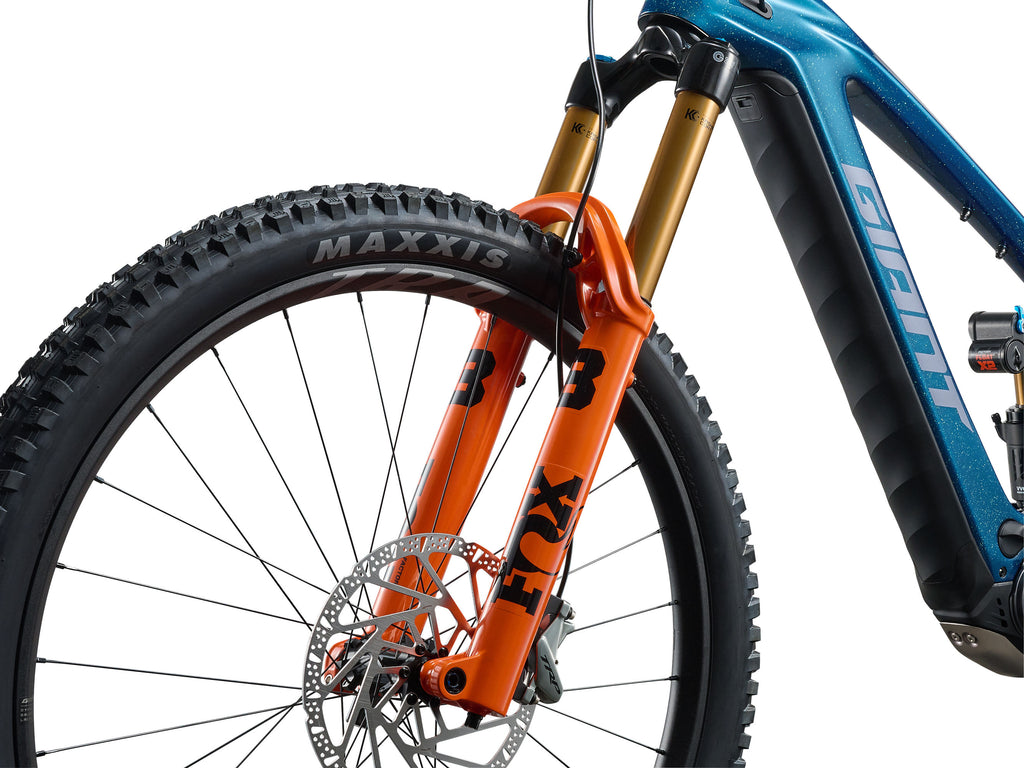

| Fork | Fox 38 Factory, 29", 180mm travel, GripX2 damper, 44mm offset, KoboltX2 110x15mm Boost axle |

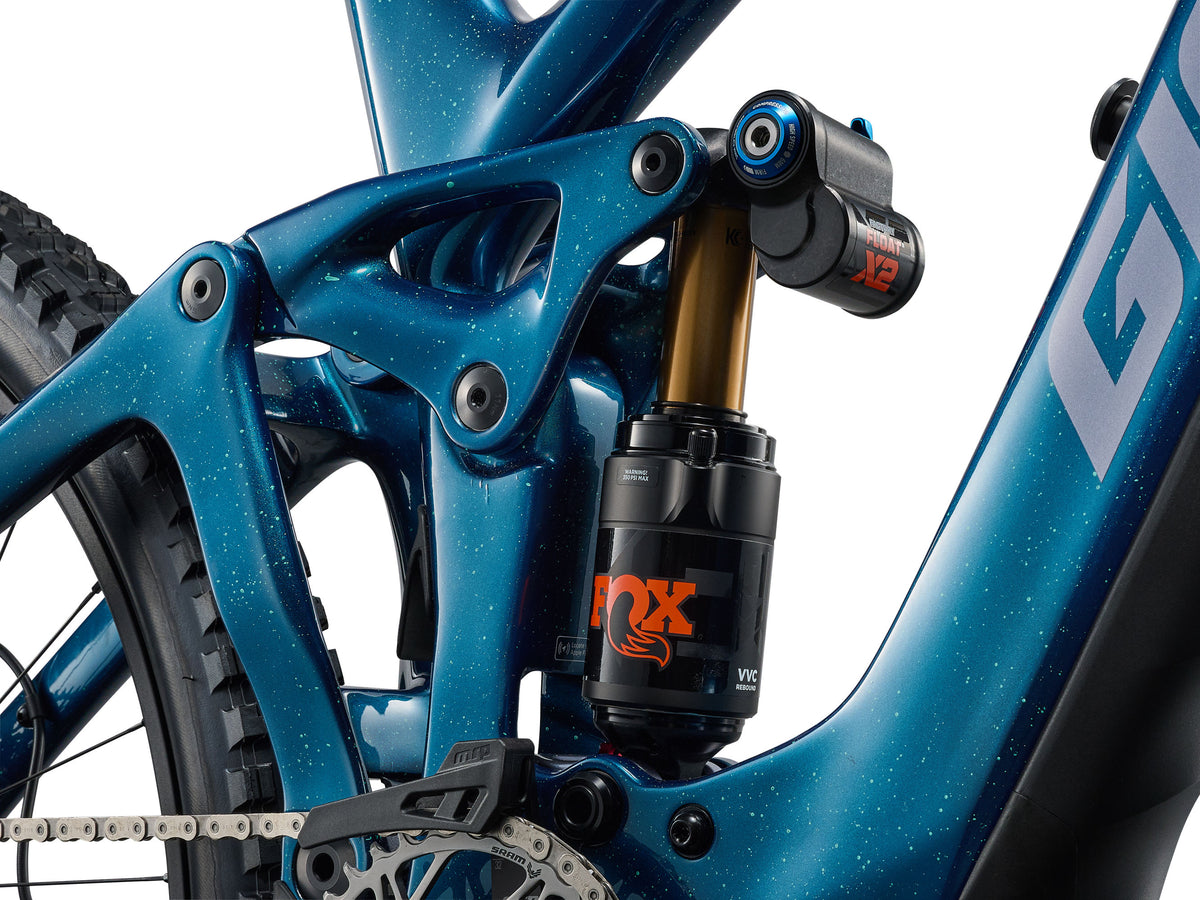

| Shock | Fox Float X2 Factory, 205x65mm, 2-position lever, HSC, LSC, HSR | LSR, custom tuned |
| Handlebar | Giant Contact SL TR35, 35mm rise, 5-degree upsweep, 9-degree backsweep, 35x800mm |
| Grips | Giant Tactal Pro-E, tapered, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL) |
| Stem | Giant Contact SL 35, 40 mm |

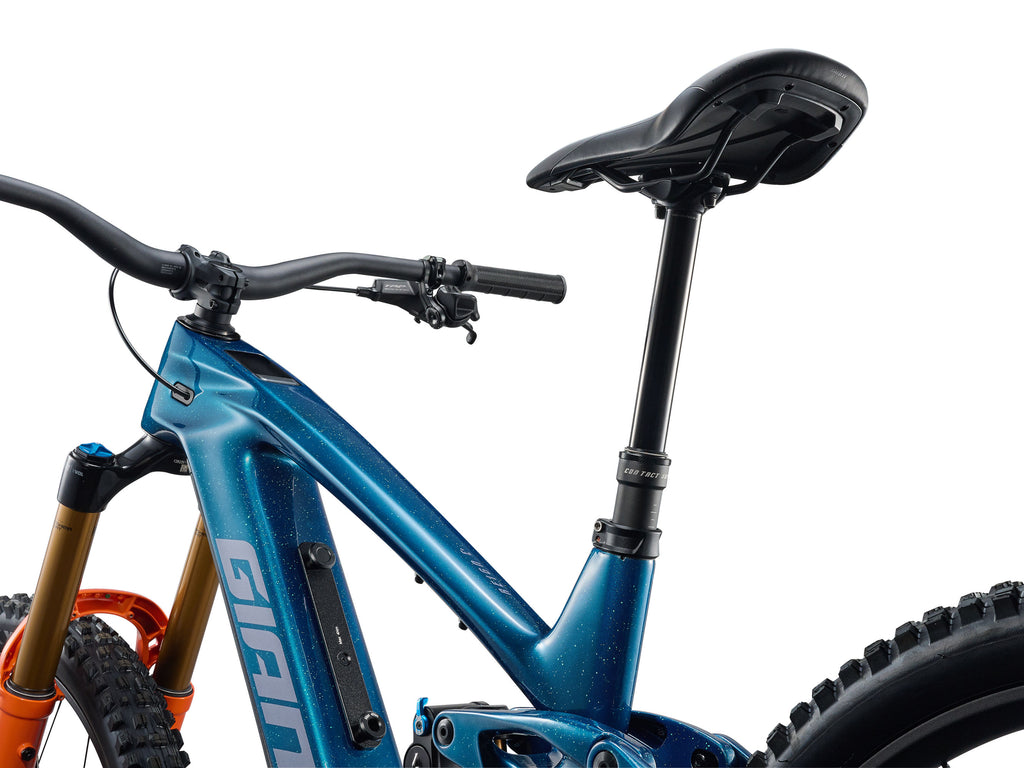

| Seatpost | Giant Contact Switch AT, 30.9 mm travel-adjust dropper post, XS & S: 110-140 mm, M & L: 140-170 mm |
| Saddle | Giant Romero, neutral |
| Shifters | SRAM AXS Pod Rocker, discrete clamp |
| Front Derailleur | SRAM XO AXS Eagle, Transmission, T-Type |

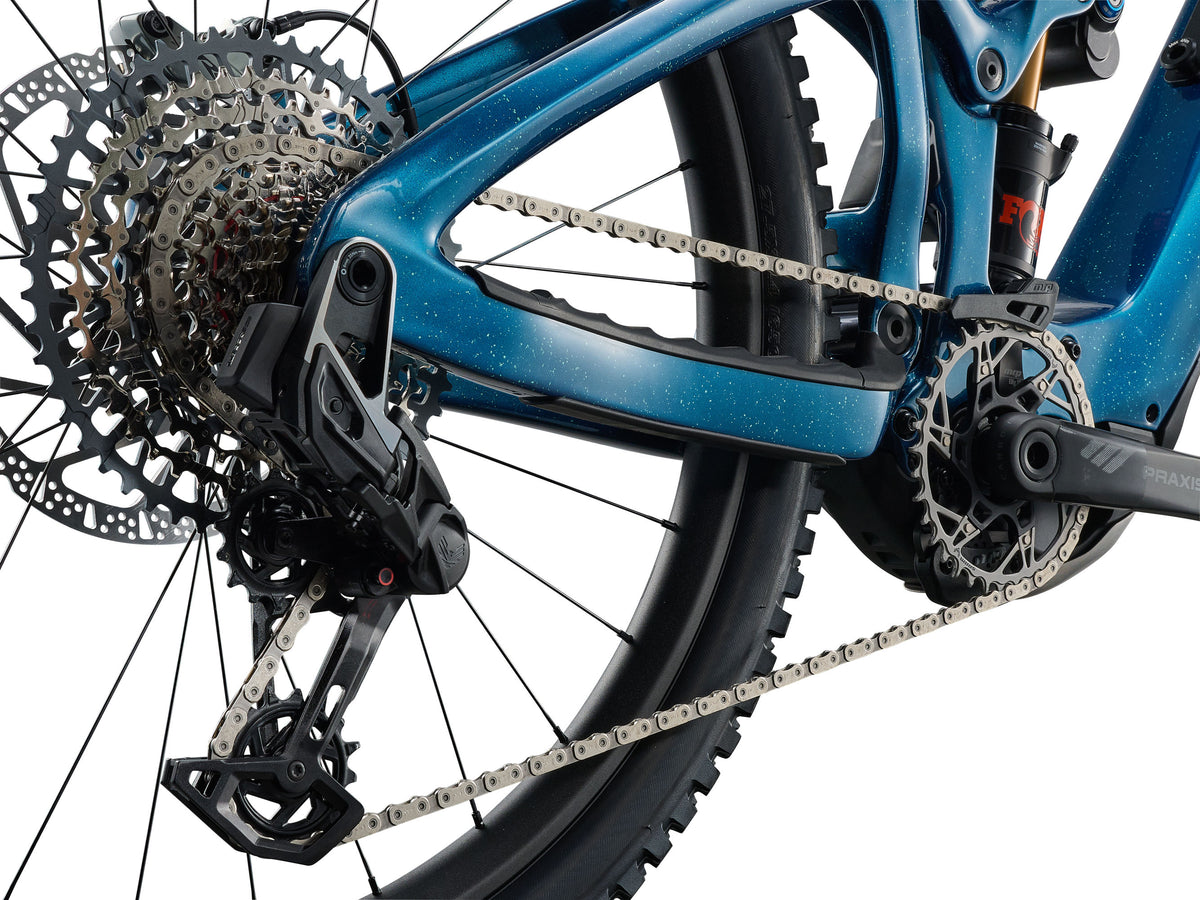

| Rear Derailleur | SRAM XO AXS Eagle, Transmission, T-Type |
| Brakes | TRP EVO Pro, hydraulic disc, 4-piston, 220mm [F/R] |
| Brake Levers | TRP EVO Pro |
| Cassette | SRAM Eagle Transmission, 10x52, 12-speed |
| Chain | SRAM Eagle Transmission, Flattop, PowerLink, 12-speed |
| Crankset | Praxis Carbon e-crank arms, Q-factor: 168mm, length: 155mm |
| Rims | Giant e-TRA, hookless, 30mm inner width, Wide Guard |
| Hubs | Giant e-TRA, E-Drive 260Nm 6-pawl driver, 72t engagement, 15x110mm [F] 12x148mm [R], e-bike optimized |
| Spokes | Sapim Race [F] E-Lite [R], e-bike optimized, Dynamic Balanced Lacing |
| Tyres | Maxxis Assagai 29x2.5" foldable, EXO+ 3C MaxxGrip [F] Maxxis Minion DHR II 27.5x2.4" WT foldable, DoubleDown, 3C MaxxGrip [R] |
| Extras | Aegis Tire Checker, BLE+ tire pressure monitoring system tubeless kit (liquid, valves, levers, manual, tool) |
| Lighting | Optional: Giant Recon series e-bike lights available and direct-connect compatible |
| Combined Maximum Load Limit | 156kg |
| Manufacturer quoted weight | 23.7kg (manufacturer reference; actual weight varies by size and specification) |
| Sizes | S, M, L, XL |
| Colours | Celestial Tide |
| Drivetrain configuration | 2 x 12 |
| Wheel size for these variants | 29 / 27.5 |
Geometry
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | |
| Seat Tube Angle (degrees) | 77.1° | 77.5° | 77.9° | 77.5° | 77.9° | 77.1° | 77.5° | 77.9° | 77.1° | 77.5° | 77.9° |
| Top Tube Length (mm) | 570 | 569 | 568 | 601 | 600 | 625 | 624 | 623 | 657 | 656 | 655 |
| Head Tube Length (mm) | 95 | 105 | 120 | 135 |
| Head Tube Angle (degrees) | 63.1° | 63.5° | 63.9° | 63.5° | 63.9° | 63.1° | 63.5° | 63.9° | 63.1° | 63.5° | 63.9° |
| Wheelbase (mm) | 1226 | 1226 | 1227 | 1261 | 1261 | 1287 | 1288 | 1288 | 1323 | 1323 | 1324 |
| Chain Stay Length (mm) | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| Stack (mm) | 647 | 645 | 642 | 654 | 651 | 669 | 667 | 665 | 683 | 680 | 678 |
| Reach (mm) | 426 | 430 | 435 | 460 | 465 | 476 | 480 | 485 | 505 | 510 | 514 |
| Crank Length (mm) | 155 | 155 | 155 | 155 |
Measurements are in millimetres unless indicated otherwise.
Component dimensions and wheel configurations can vary by frame size. Refer to the size annotations in the specifications. Manufacturer specifications may change; confirm your chosen size and colour before ordering.
Additional information
- Bike Type — eBike
- Rider — Unisex
- Frame Material — Carbon
- Suspension — Full Suspension
- Wheel Size — 29 / 27.5
- Brake Type — Hydraulic disc
- Motor — Giant
- Year — 2027
- Colour — S
