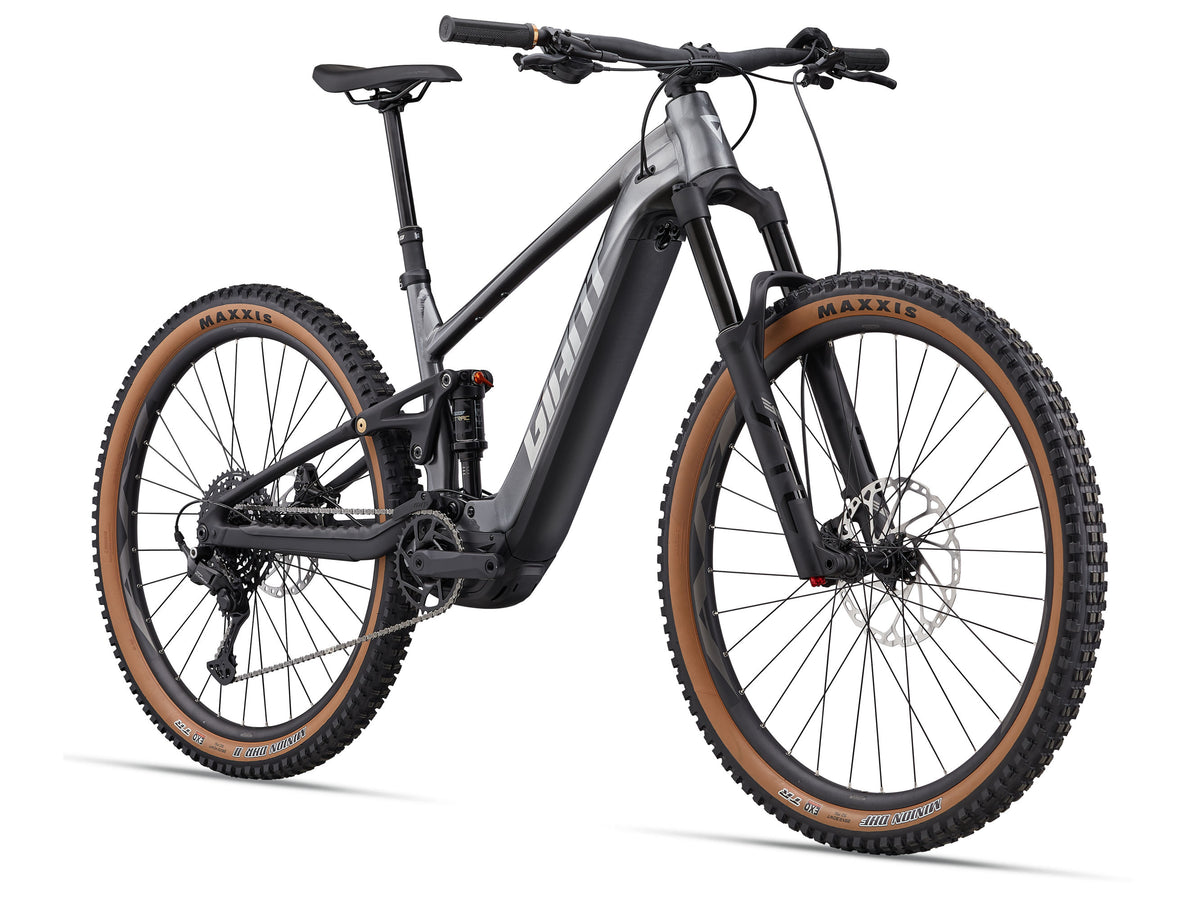

Giant Stance E+ 1 2027
€4.799,00
Taxes included.
Product description
Giant Stance E+ 1 2027 is an electric mountain bike. It features a aluminium frame. Hydraulic disc brakes are fitted. The drivetrain uses a 1 x 10 configuration. The electric system includes a 800 Wh battery. Choose from the listed sizes and colours at Scanlon Cycles.
Specifications

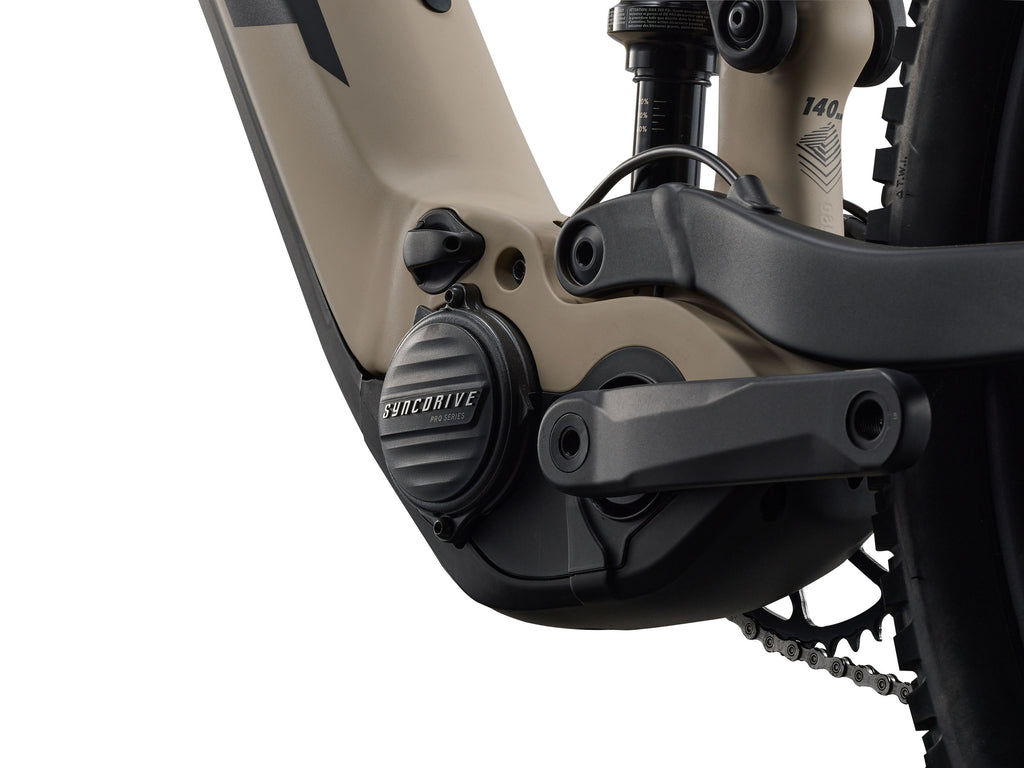

| Motor | Giant SyncDrive Pro3X 100Nm, PedalPlus 6-Sensor technology |
|---|---|
| Controller | Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels |

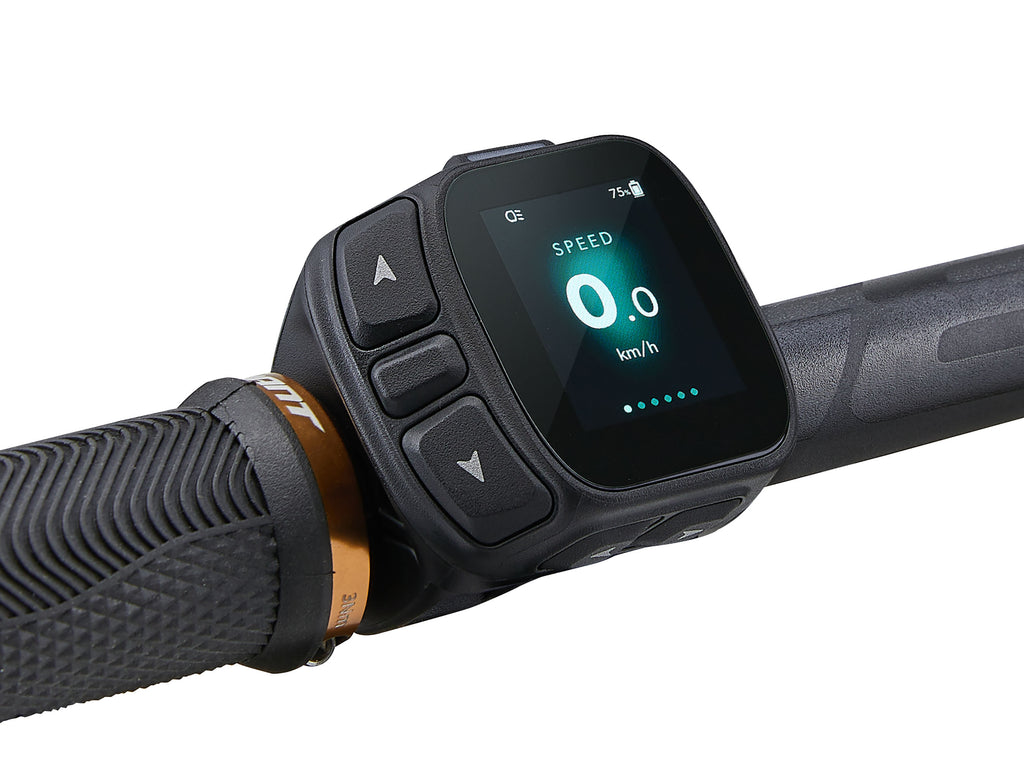

| Display | Giant RideControl Dash 2, full color LCD display |
| Battery | Giant EnergyPak 800Wh |
| Charger | Giant EnergyPak 4A smart charger |
| Sizes | S, M, L, XL |
| Frame | ALUXX SL-grade aluminum, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDHTM Universal Derailleur hanger, KSA40 compatible, 185x52.5mm shock, 1.5~1.8" headset (ZS62/ZS72) |

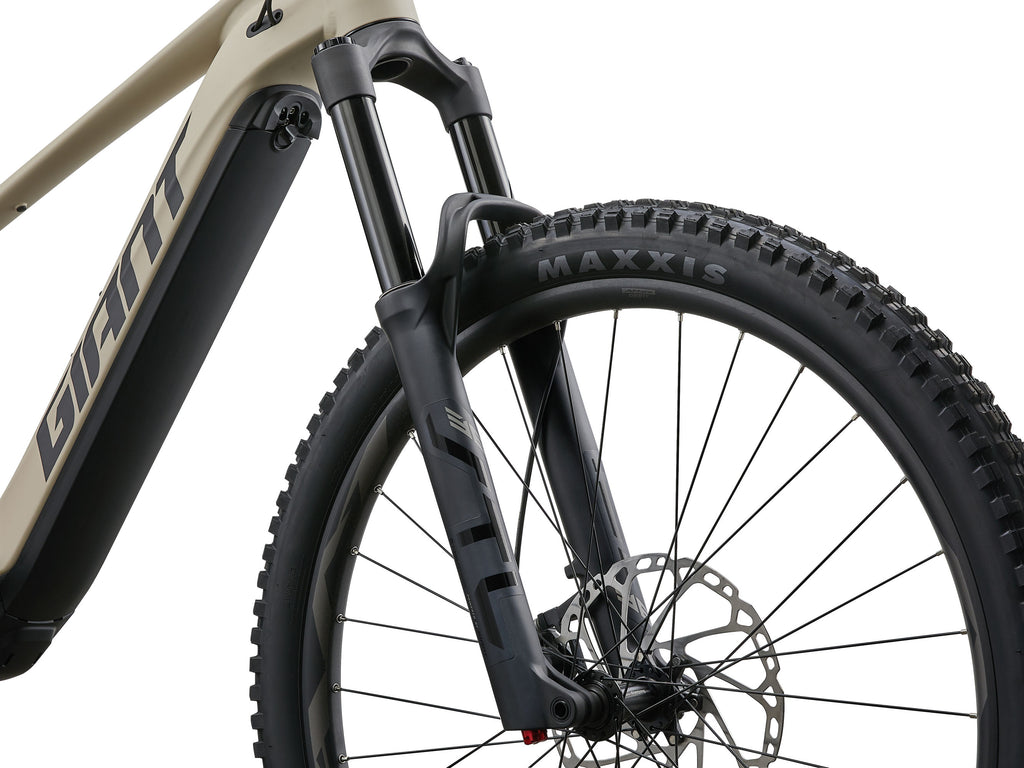

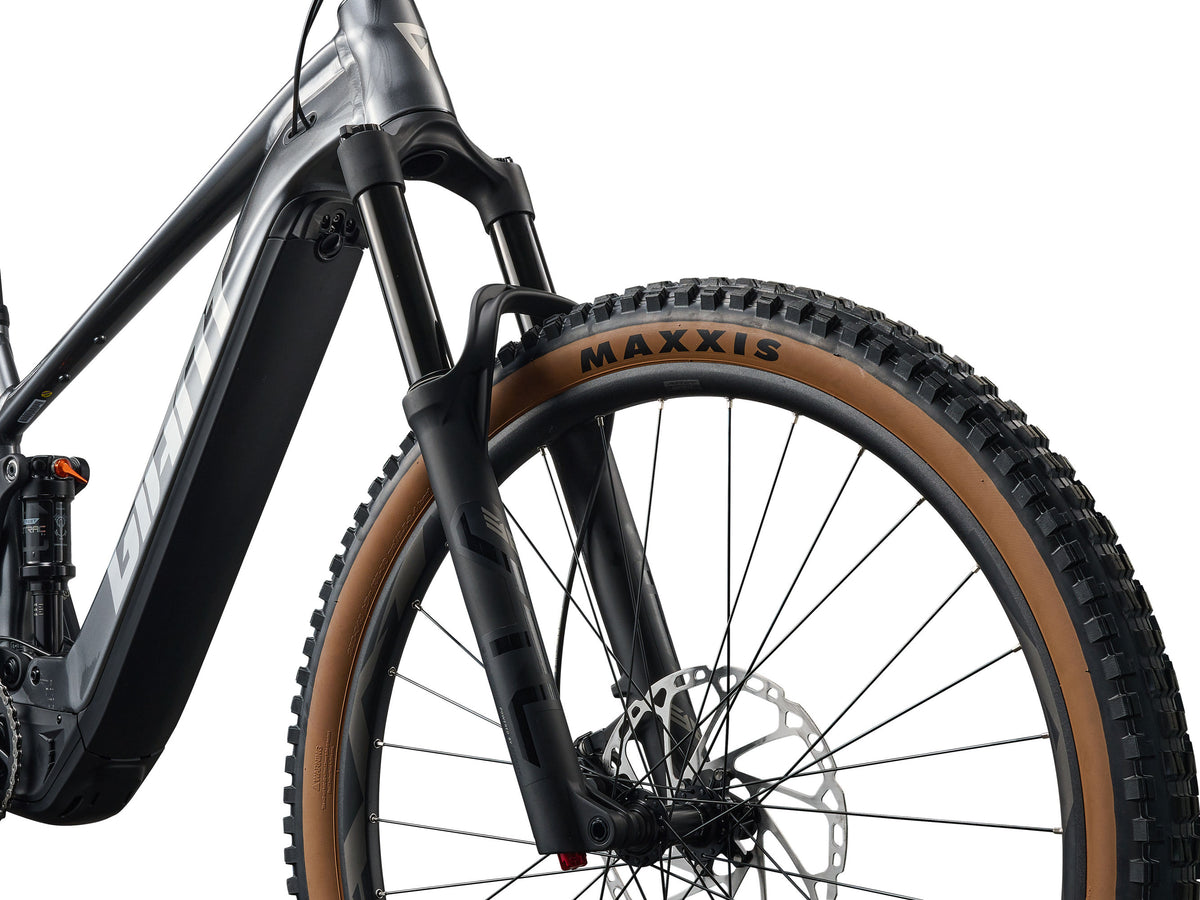

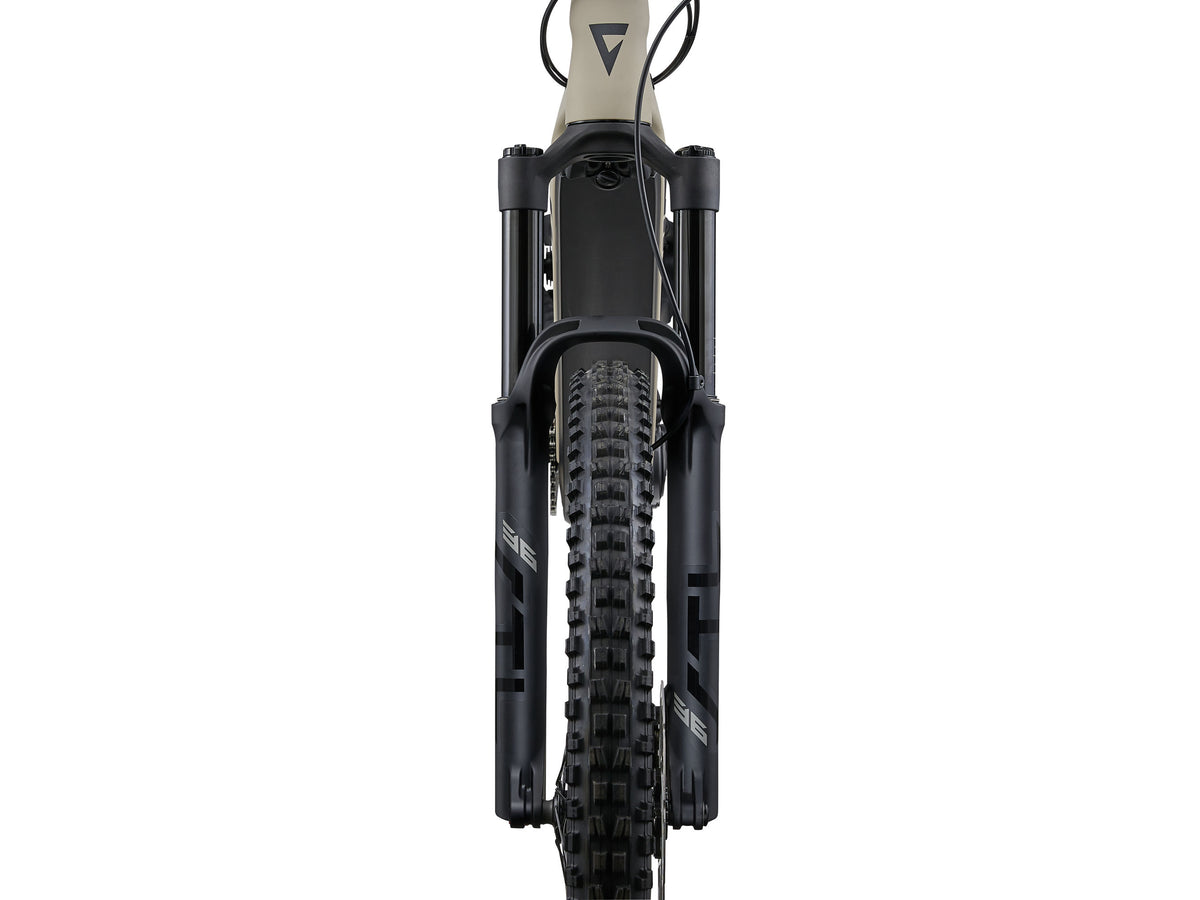

| Fork | Giant STL 36 Air, 150mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible |

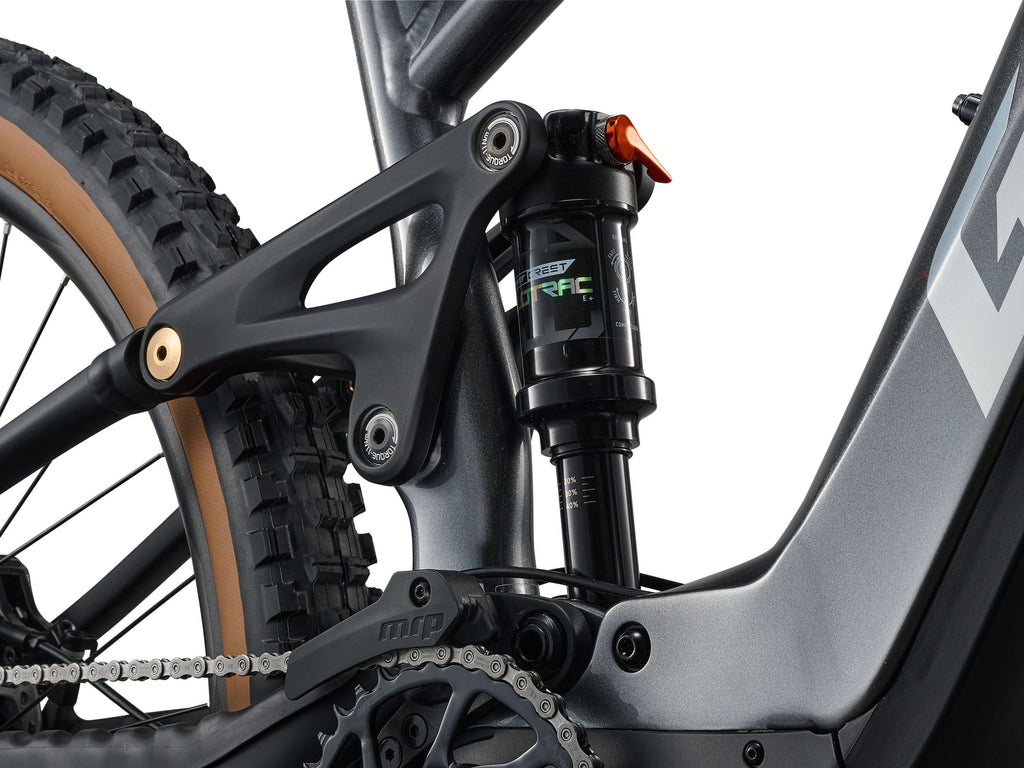

| Shock | Giant Crest FloTrac, 3-position lever, e-bike optimized, 185x52.5mm Sag recommendation: 30% (15.75mm) |

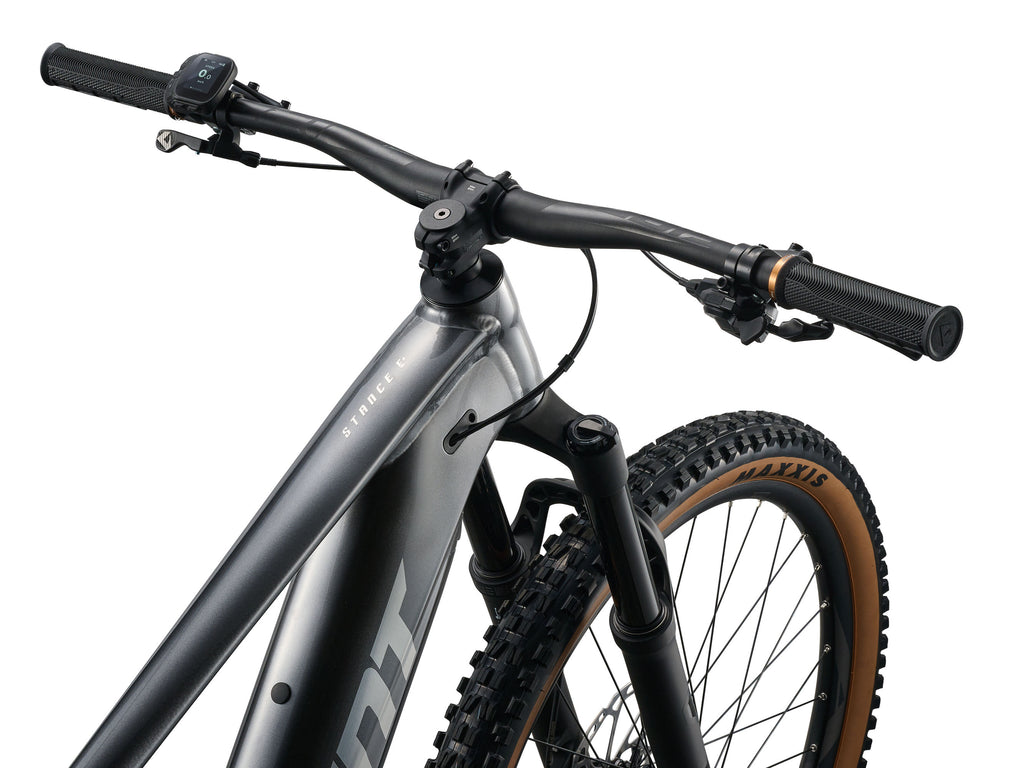

| Handlebar | Giant Connect TR35, 20mm Rise, 35x760mm [S], 35x780mm [M-XL] |
| Grips | Giant Tactal Pro single lock-on |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch AT travel adjust dropper seatpost (S:110~140mm, M:140~170m, L/XL: 170~200mm) |
| Saddle | Giant Contact Ergo Trail |
| Pedals | Large platform pedal, 28-pins, PP cage, Steel axle |
| Shifters | Shimano Cues LinkGlide |

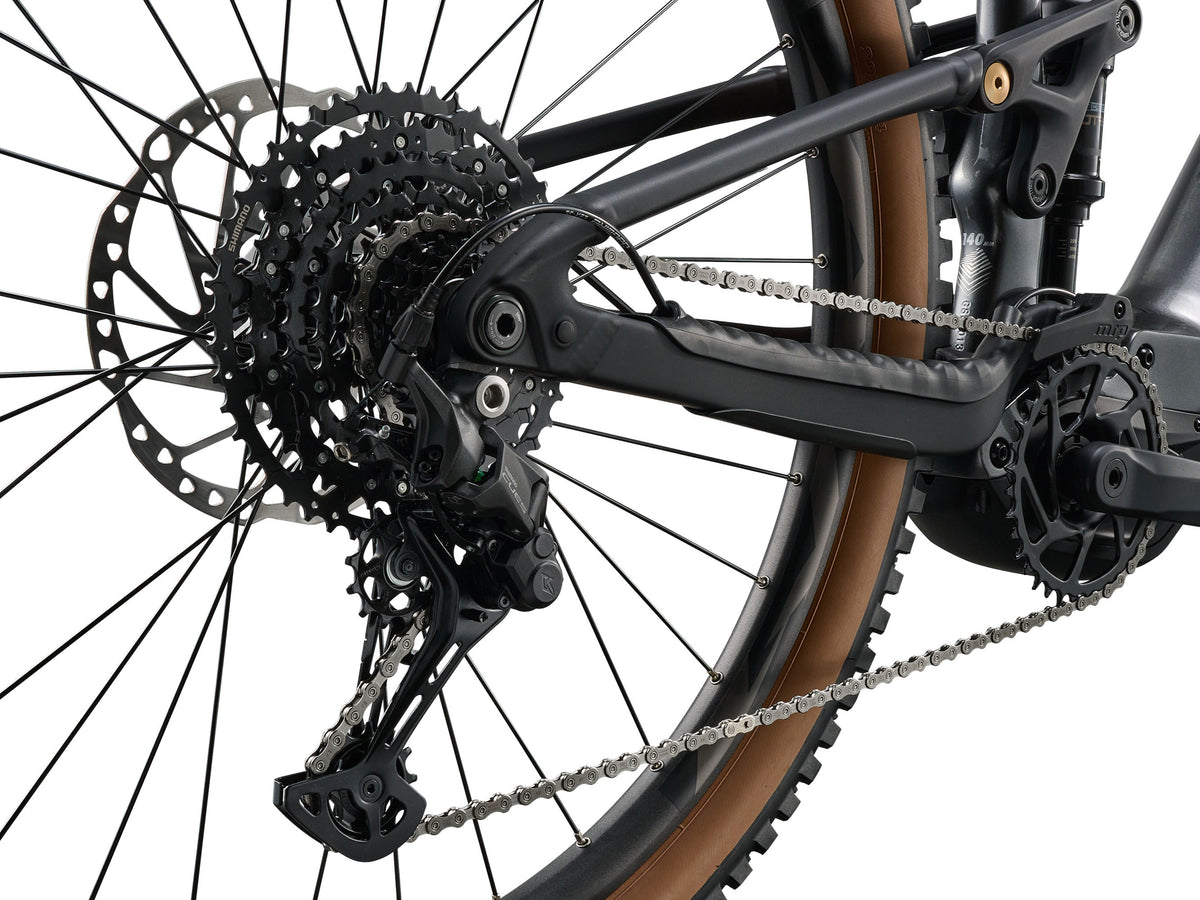

| Rear Derailleur | Shimano Cues LinkGlide, 10-speed, Shadow+ |
| Brakes | Shimano Deore, BR-M420, hydraulic disc, 4-piston, 220mm [F] 203mm [R] |
| Brake Levers | Shimano Deore, BL-M401 |
| Cassette | Shimano Cues LinkGlide, 10-speed, 11-48T |
| Chain | Shimano LinkGlide |
| Crankset | Forged aluminum crank arms |
| Rims | Giant AM30, Tubeless ready, 30mm inner width |
| Hubs | Shimano TC500 Boost, Center-Lock, 15x110mm [F] 12x148mm [R] |
| Spokes | Stainless Steel |
| Tyres | Maxxis Minion DHF 29X2.50"" WT Foldable, TLR, EXO [F] Maxxis Dissector 29X2.40"" WT Foldable TLR EXO [R] |
| Lock | Torx 25 Battery Lock with built-in Torque limiter |
| Fender/Chainguard | MRP 1x HD guide, CS e-Mount, 32~38T Adjustable |
| Max Chainring Size | Direct-mount steel 36T (maximum: 38T) |

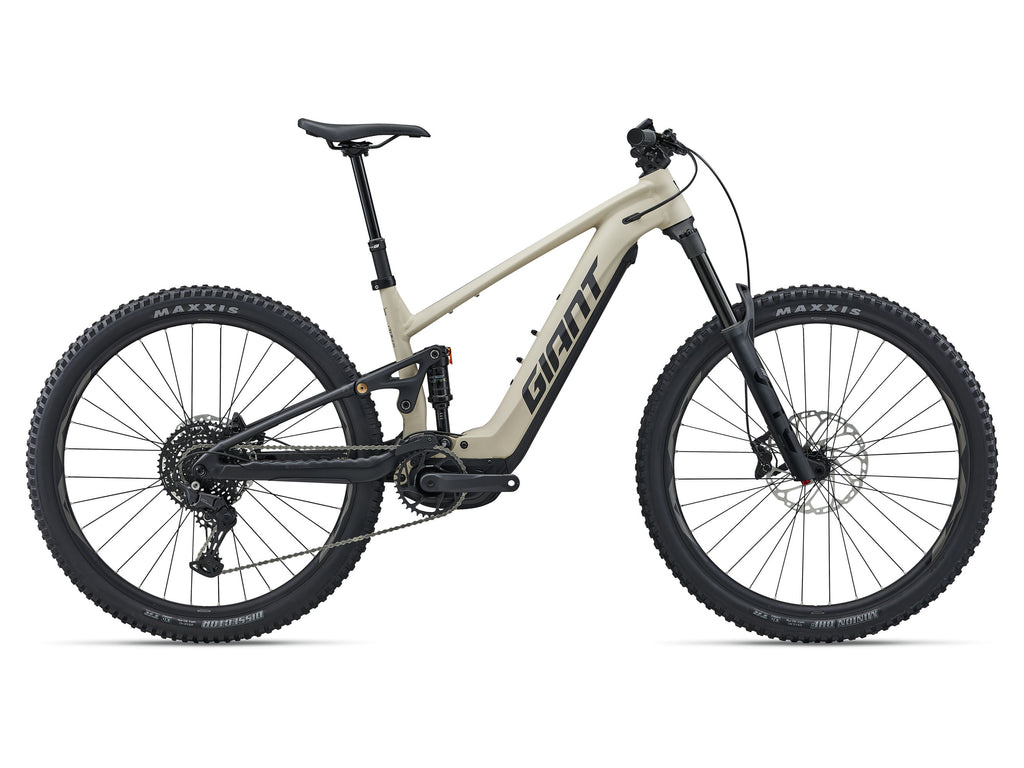

| Colours | Almond/Black, Charcoal/Black |
| Drivetrain configuration | 1 x 10 |
| Wheel size for these variants | 29 |
Geometry
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
| Seat Post Insertion Depth (mm) | 235 | 260 | 285 | 310 |
| Seat Tube Angle (degrees) | 76.5° | 76.5° | 76.5° | 76.5° |
| Top Tube Length (mm) | 579 | 606 | 635 | 663 |
| Head Tube Length (mm) | 100 | 115 | 130 | 145 |
| Head Tube Angle (degrees) | 64.5° | 64.5° | 64.5° | 64.5° |
| Fork Rake (mm) | 44 | 44 | 44 | 44 |
| Trail (mm) | 132 | 132 | 132 | 132 |
| Wheelbase (mm) | 1229 | 1259 | 1291 | 1322 |
| Chain Stay Length (mm) | 468 | 468 | 468 | 468 |
| Bottom Bracket Drop (mm) | 26 | 26 | 26 | 26 |
| Stack (mm) | 614 | 628 | 641 | 655 |
| Reach (mm) | 431 | 455 | 480 | 505 |
| Stand Over Height (mm) | 746 | 744 | 756 | 762 |
| Handlebar Width (mm) | 780 | 780 | 780 | 780 |
| Stem Length (mm) | 40 | 40 | 40 | 40 |
| Crank Length (mm) | 165 | 165 | 165 | 165 |
| Wheel Size | 29" | 29" | 29" | 29" |
Measurements are in millimetres unless indicated otherwise.
Component dimensions and wheel configurations can vary by frame size. Refer to the size annotations in the specifications. Manufacturer specifications may change; confirm your chosen size and colour before ordering.
