Trance Advanced E+ 1 2027
Carbon/Tactical Grey / S
€8.399,00
Skip to product information

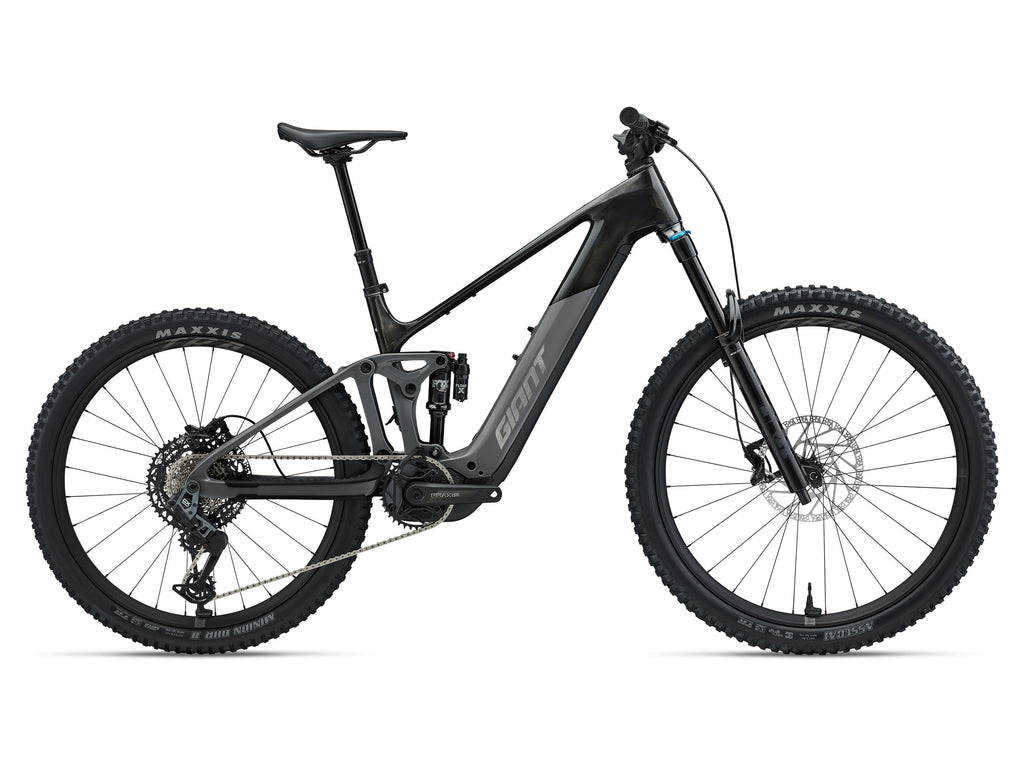

Giant Trance Advanced E+ 1 2027
€8.399,00
Taxes included.
Product description
Giant Trance Advanced E+ 1 2027 is an electric mountain bike. It features a carbon frame. Hydraulic disc brakes are fitted. The drivetrain uses a 1 x 12 configuration. The electric system includes a 840 Wh battery. Choose from the listed sizes and colours at Scanlon Cycles.
Specifications
| Motor | SyncDrive Pro4, 120Nm, 48V, 850W Peak Power |
|---|---|
| Controller | RideControl Ergo 5 wireless Integrated E+ System & seatpost remote |
| Display | RideControl GO Lux |
| Battery | EnergyPak 840Wh, 48V |
| Charger | 48V 4A Smart Charger X |
| Sizes | S, M, L, XL |
| Frame | Advanced SL-grade composite frame, Advanced forged composite upper rocker, 150mm Maestro suspension system, 3-position Flip-Chip adjustable geometry, 148mm Boost hub spacing, ZS66/ZS66 Headset compatible |
| Fork | Fox 36 Performance, 160mm travel, Grip damper |
| Shock | Fox Float X, Performance 2-position, 185x55mm Custom Tuned. Recommmended sag: 30% |
| Handlebar | Giant Contact SL Trail integrated, 27mm rise, Up: 5⁰ Back: 8⁰, 800mm |
| Grips | Giant Tactal Pro |
| Stem | Giant Contact SL Trail integrated, 40mm |
| Seatpost | Giant Contact Switch E+, 30.9mm electronic travel-adjust dropper post, (S:140, M-L:170, XL:200) |
| Saddle | Giant Romero SL HD |
| Shifters | Sram AXS Pod Rocker, discrete clamp |
| Rear Derailleur | SRAM GX AXS |
| Brakes | TRP EVO Expert, hydraulic disc, 4-piston, 220mm [F] 203mm [R] |
| Brake Levers | TRP EVO Expert |
| Cassette | SRAM Eagle Transmission, XS-1270, 10-52T, 12-speed |
| Chain | KMC eFlatHT, high-torque e-bike optimized flat-top chain 12-speed |
| Crankset | Praxis TYPE-2 alloy, SRAM Eagle Transmission 104BCD 36T |
| Rims | Giant TRA HD, Alloy, 30mm inner width, WideGuard Technology |
| Hubs | Giant TRA HD, E-Drive 350Nm, Titanium ratchet system, 72T engagement, 15x110mm [F] 12x148mm [R], e-bike optimized |
| Spokes | Giant TRA HD, Dynamic Balanced Lacing (D.B.L.) |
| Tyres | Maxxis Assagai 29X2.50" Foldable, TLR, EXO+, 3C Maxx Grip [F] Maxxis Minion DHR II 27.5x2.4"" Foldable, TLR, EXO+, MaxxTerra [R] |
| Extras | Giant Aegis Tire Checker, included tire pressure management system (TPMS) Tubeless kit (liquid, valves, levers, manual, tool) |
| Fender/Chainguard | Co-molded guide 32-36T adjustable |
| Colours | Carbon/Tactical Grey, DUSTED PERI |
| Drivetrain configuration | 1 x 12 |
| Wheel size for these variants | 29 / 27.5 |
Geometry
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | |
| Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
| Seat Post Insertion Depth (mm) | 262.4 | 289.4 | 289.4 | 319.4 |
| Seat Tube Angle (degrees) | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° |
| Top Tube Length (mm) | 568 | 567 | 566 | 605 | 604 | 603 | 630 | 629 | 628 | 662 | 661 | 660 |
| Head Tube Length (mm) | 110 | 120 | 130 | 140 |
| Head Tube Angle (degrees) | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° |
| Fork Rake (mm) | 44 | 44 | 44 | 44 |
| Trail (mm) | 135.9 | 135.9 | 135.9 | 135.9 |
| Wheelbase (mm) | 1200 | 1199 | 1197 | 1239 | 1237 | 1236 | 1267 | 1265 | 1264 | 1300 | 1299 | 1298 |
| Chain Stay Length (mm) | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 |
| Bottom Bracket Drop (mm) | 17 | 12 | 7 | 17 | 12 | 7 | 17 | 12 | 7 | 17 | 12 | 7 |
| Stack (mm) | 634 | 631 | 629 | 643 | 640 | 638 | 652 | 649 | 647 | 661 | 659 | 658 |
| Reach (mm) | 422 | 425 | 428 | 457 | 460 | 463 | 477 | 480 | 484 | 504 | 510 | 513 |
| Handlebar Width (mm) | 800 | 800 | 800 | 800 |
| Stem Length (mm) | 40 | 40 | 40 | 40 |
| Crank Length (mm) | 155 | 155 | 155 | 155 |
| Wheel Size | 29" [F], 27.5" [R] | 29" [F], 27.5" [R] | 29" [F], 27.5" [R] | 29" [F], 27.5" [R] |
Measurements are in millimetres unless indicated otherwise.
Component dimensions and wheel configurations can vary by frame size. Refer to the size annotations in the specifications. Manufacturer specifications may change; confirm your chosen size and colour before ordering.
Additional information
- Bike Type — eBike
- Rider — Unisex
- Frame Material — Carbon
- Suspension — Full Suspension
- Wheel Size — 29 / 27.5
- Brake Type — Hydraulic disc
- Motor — Giant
- Year — 2027
- Colour — S
