Giant Trance Advanced E+ SE 2027
€7.199,00
Taxes included.
Product description

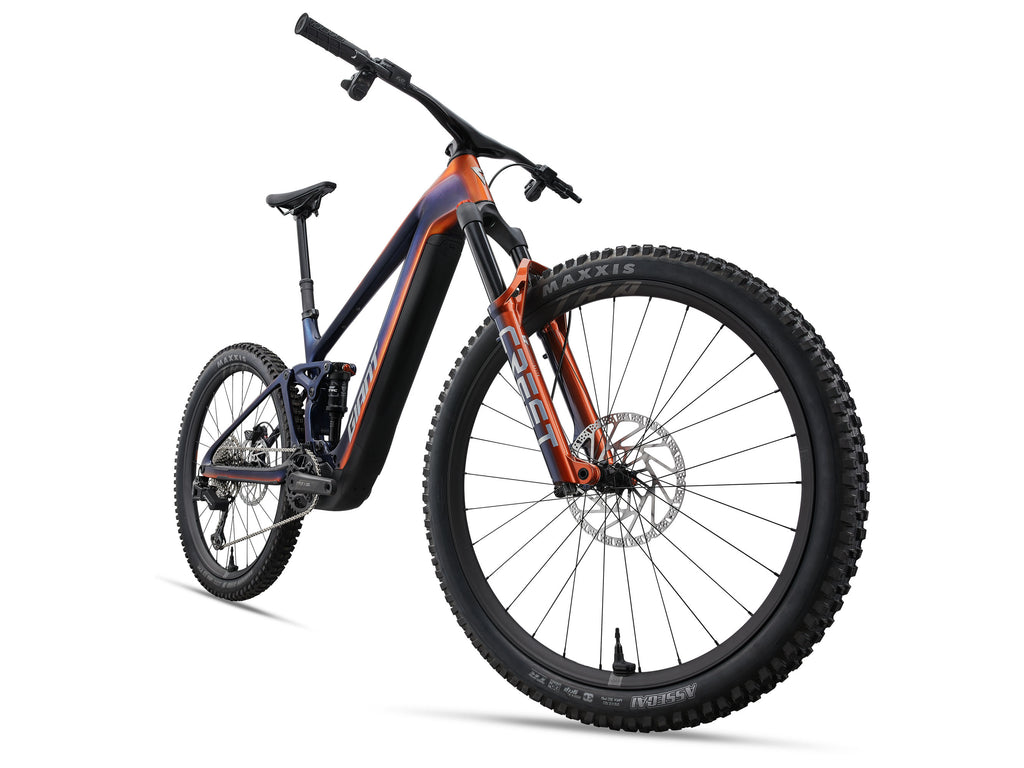

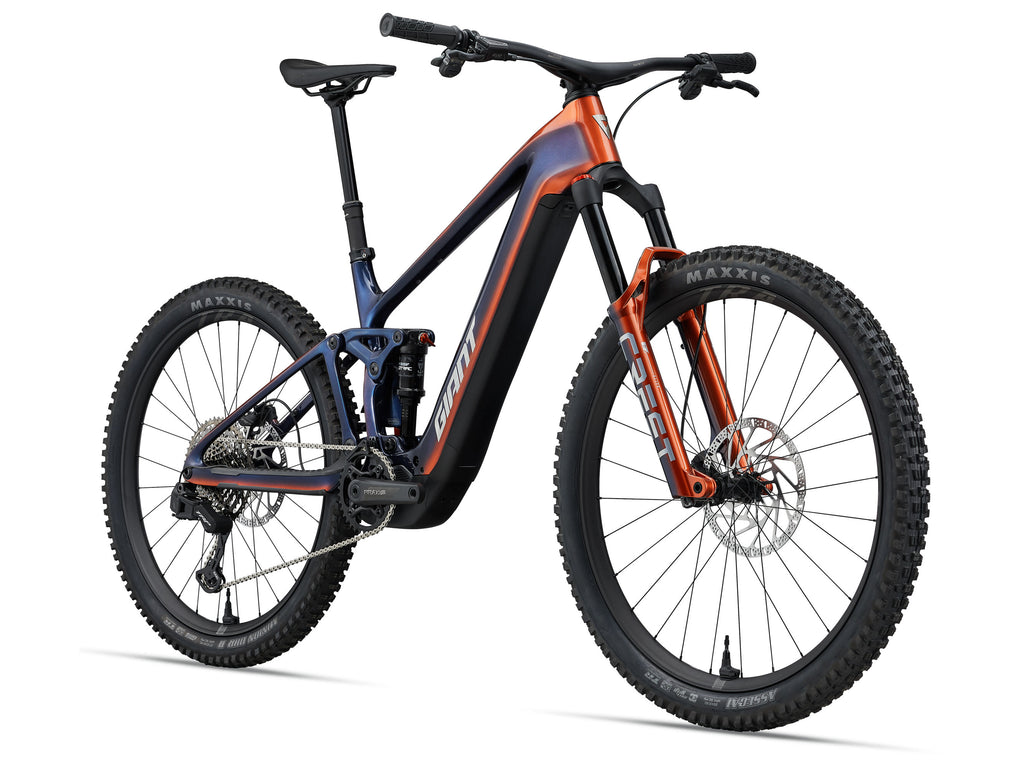

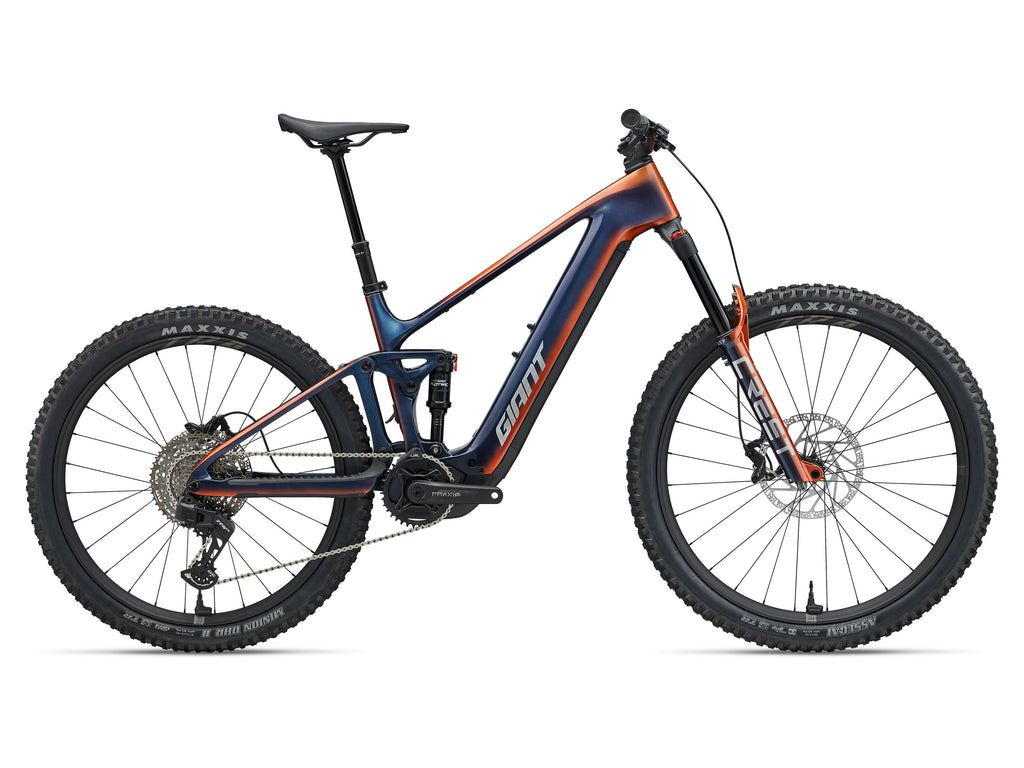

Giant Trance Advanced E+ SE 2027 is an electric mountain bike. It features a carbon frame. Hydraulic disc brakes are fitted. The drivetrain uses a 1 x 11 configuration. The electric system includes a 840 Wh battery. Choose from the listed sizes and colours at Scanlon Cycles.
Specifications

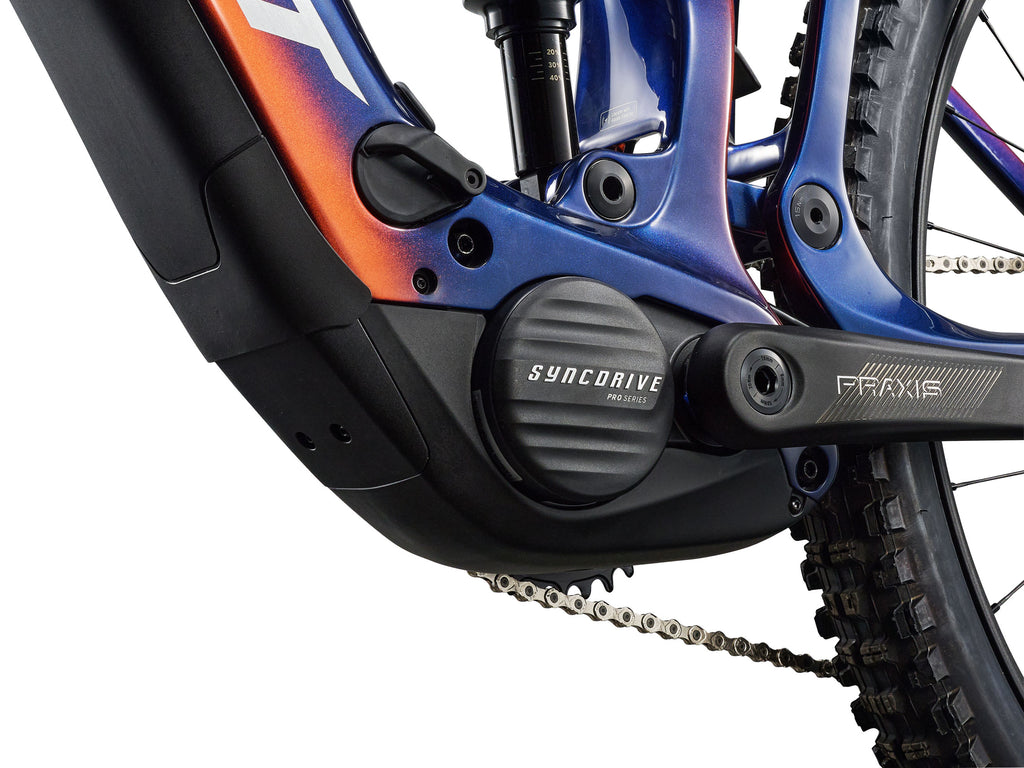

| Motor | Giant SyncDrive Pro 4, 120 Nm, 48 V, 850 W peak power |
|---|---|
| Controller | Giant RideControl Ergo 5 wireless, Integrated E+ System & seatpost remote |
| Display | Giant RideControl Go Lux |
| Battery | Giant EnergyPak Smart 840, 48V |
| Charger | Giant Smart Charger X, 48 V 4A |

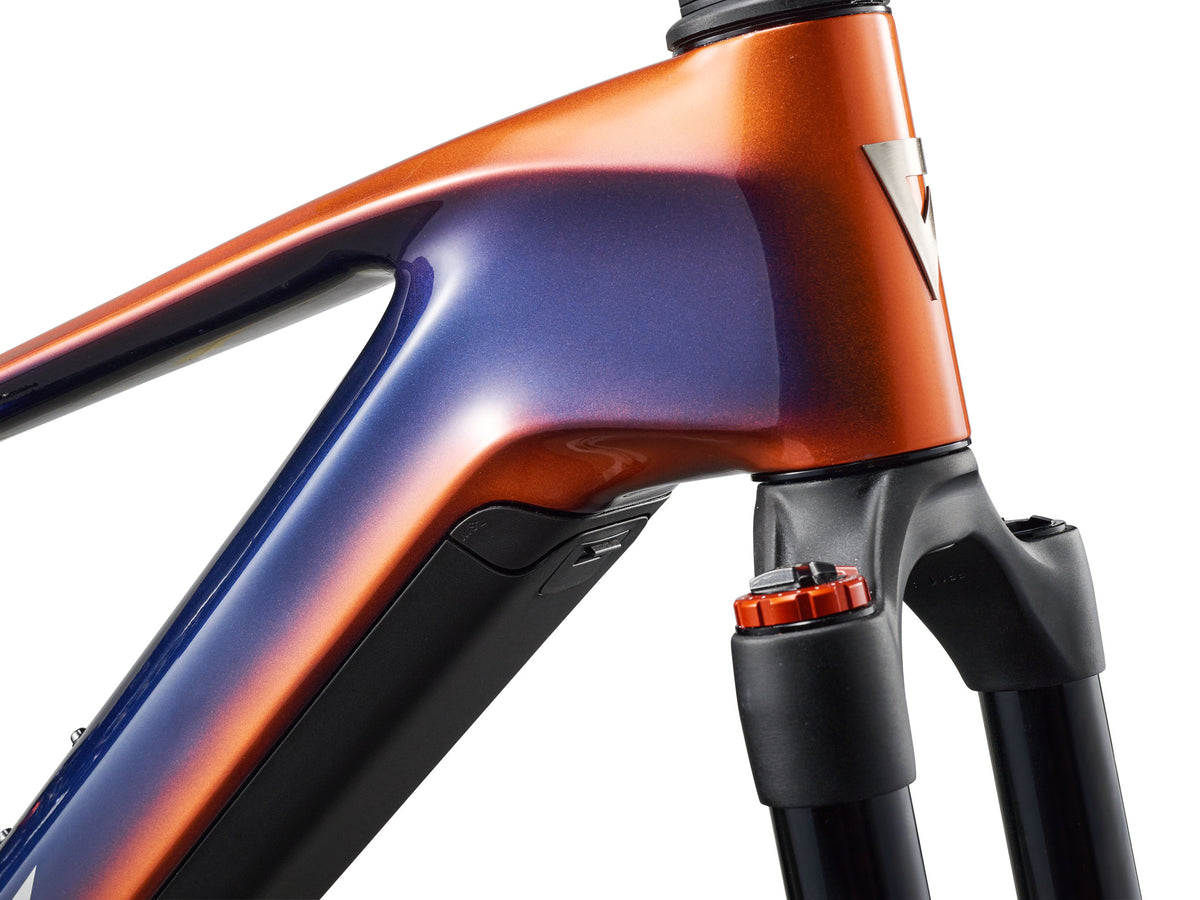

| Frame | Advanced-grade composite frame, Advanced Forged Composite upper rocker, 150mm Maestro suspension system, 3-position flip chip adjustable geometry, 148 mm BOOST hub spacing, ZS66/ZS66 headset compatible |

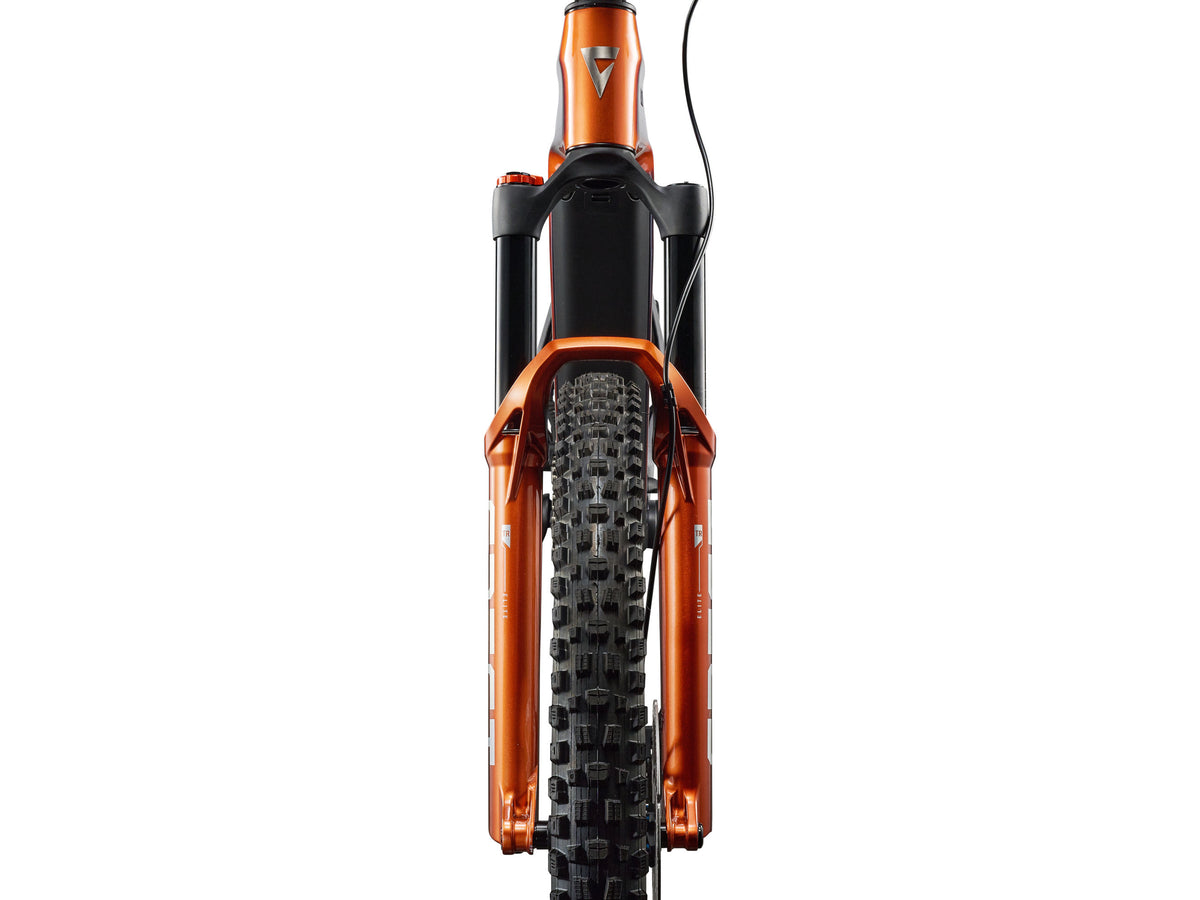

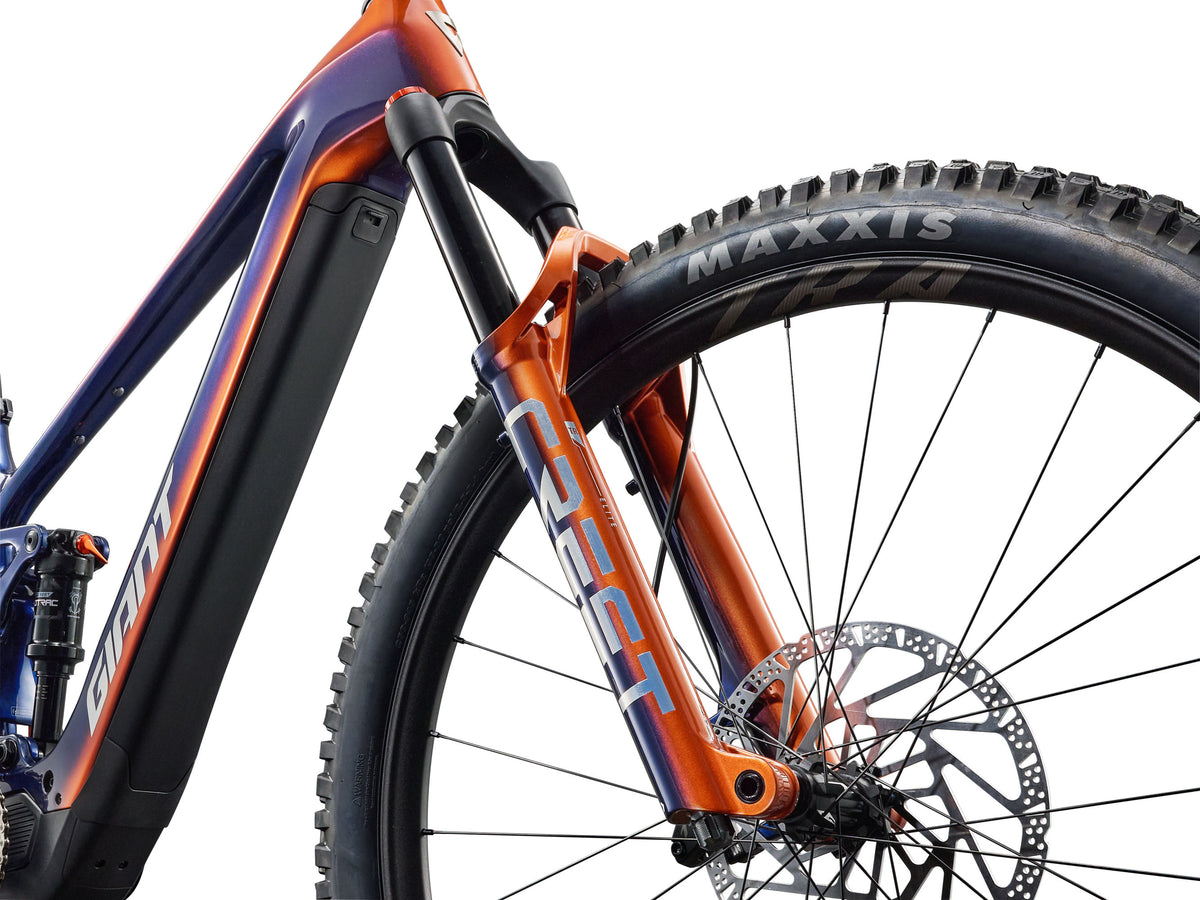

| Fork | CREST TR Elite E-tuned, 160mm, Dual Air, Elite damper |

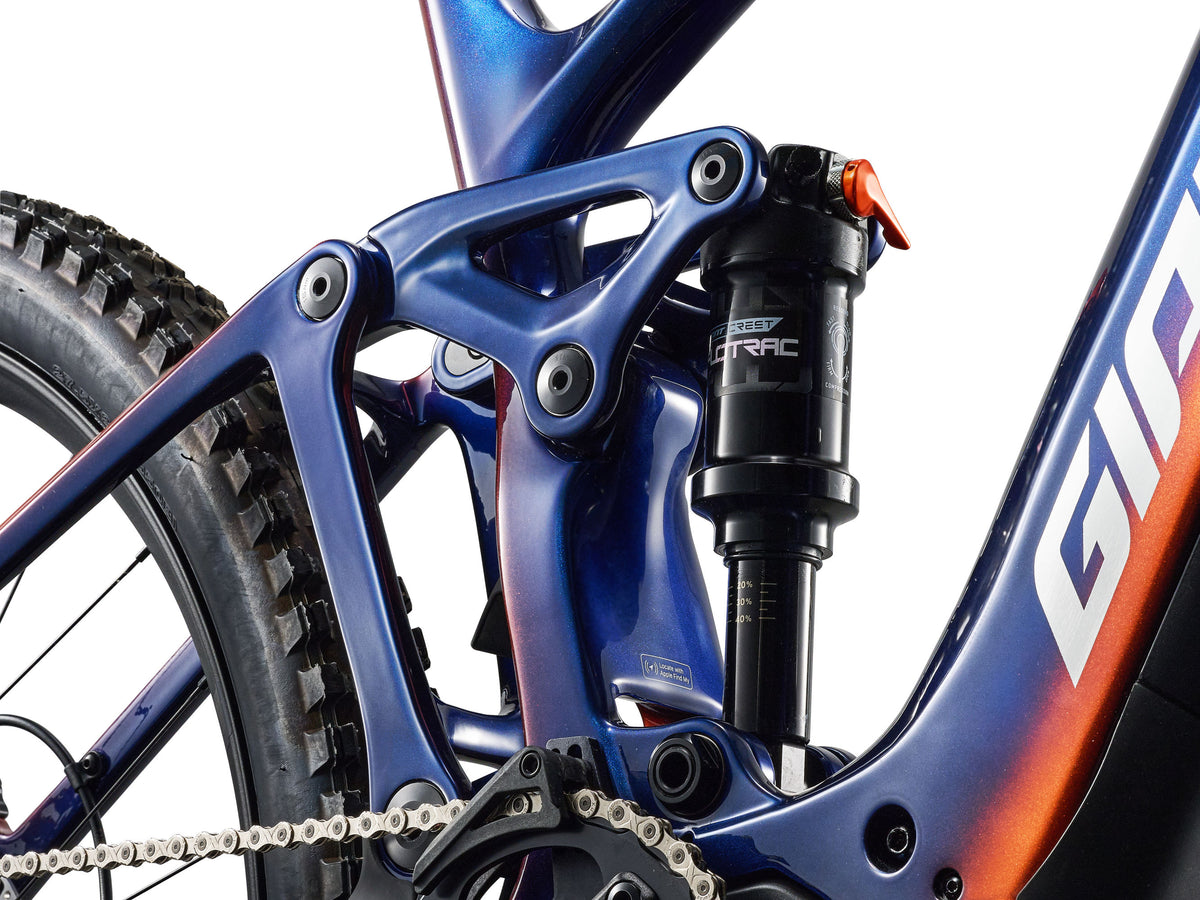

| Shock | CREST Flotrac TR E-tuned, 185 x 55 mm, custom tuned, recommended sag 30% |

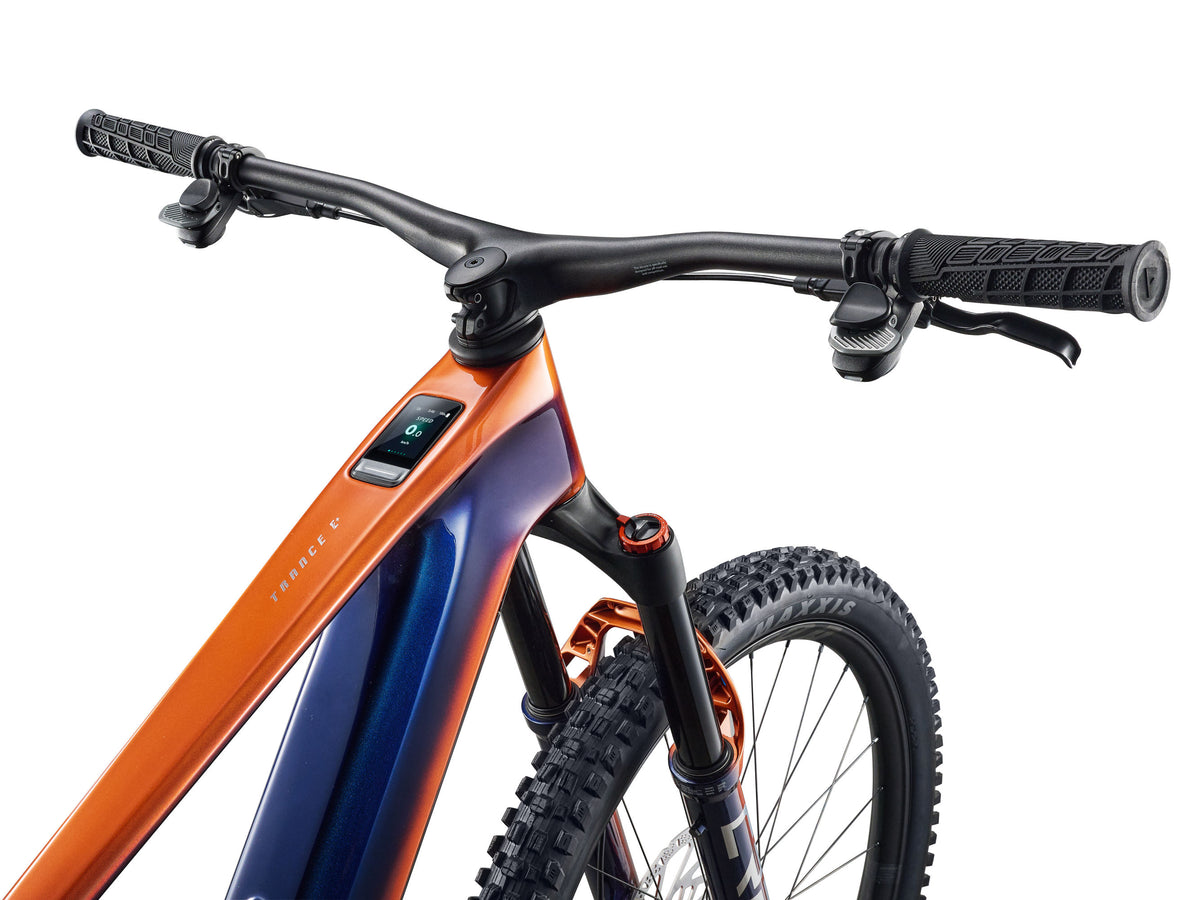

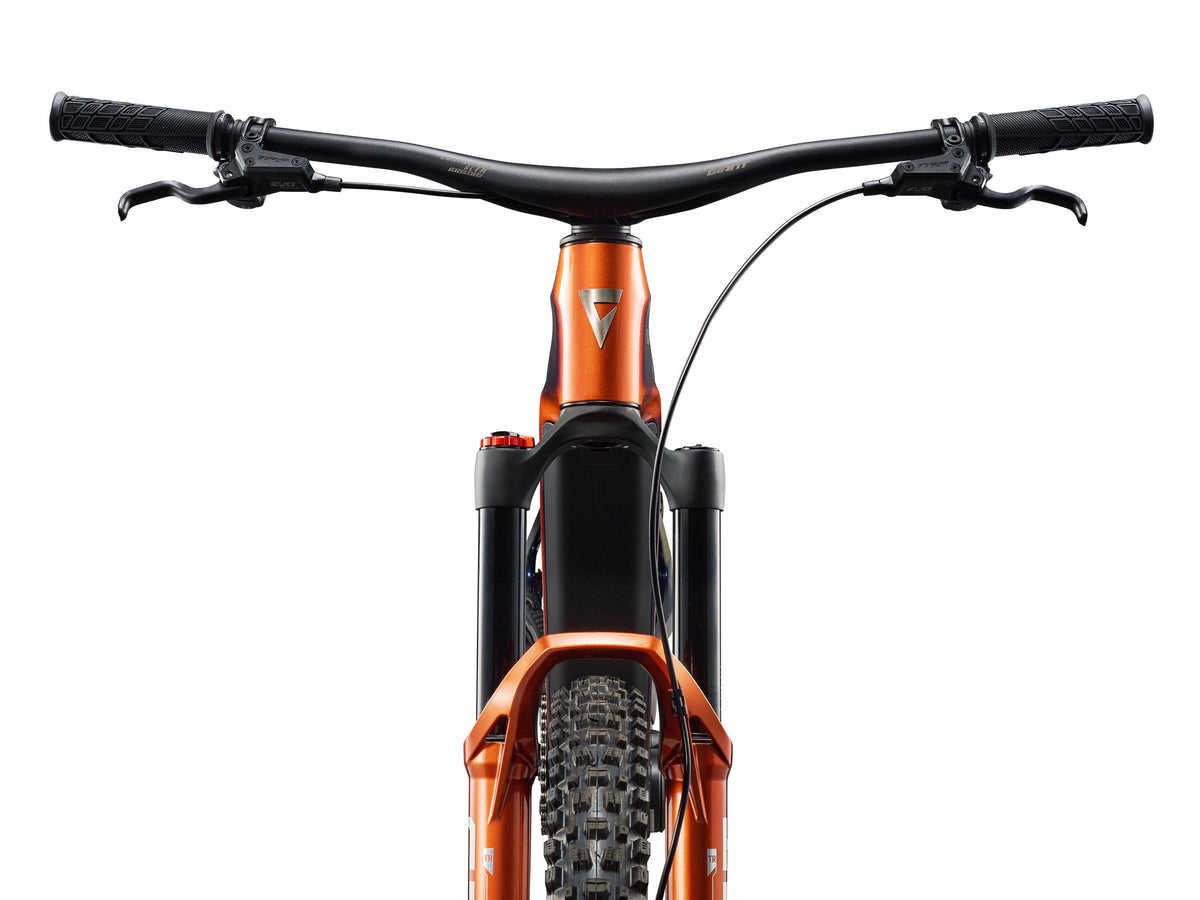

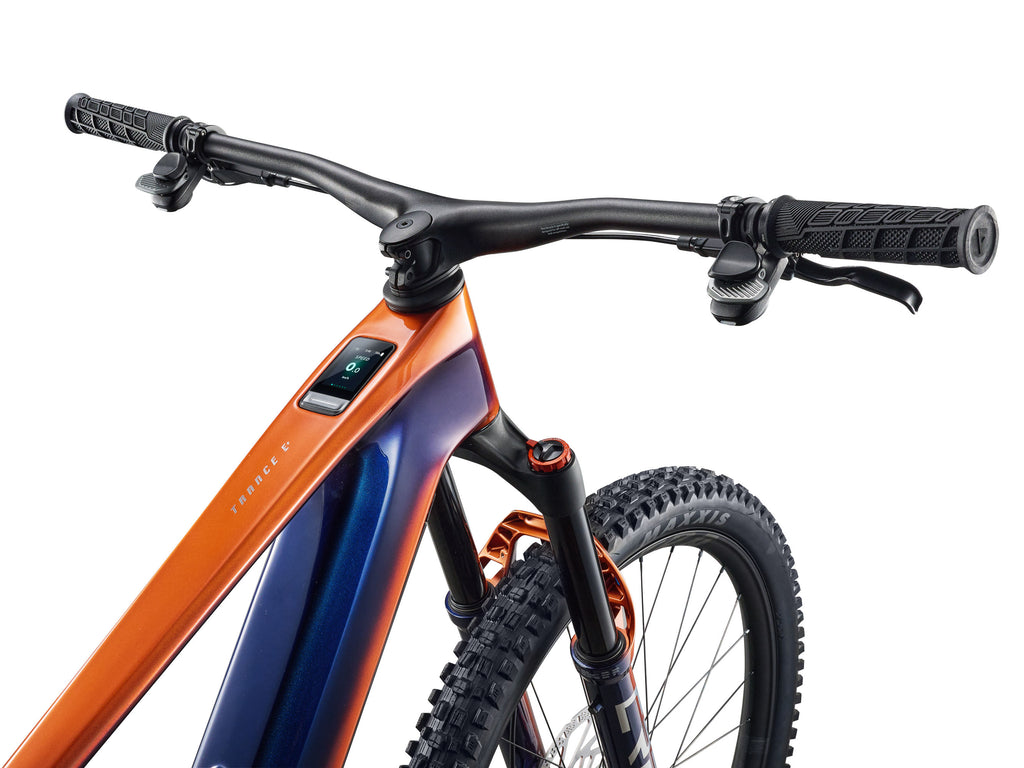

| Handlebar | Giant Contact SL Trail integrated, 27mm rise, Up: 5⁰ Back: 8⁰, 800mm |
| Grips | Giant Tactal Pro |
| Stem | Giant Contact SL Trail Integrated, 40 mm |
| Seatpost | Giant Contact Switch E+, 30.9 mm, electronic dropper post |
| Saddle | Giant Romero HD |
| Shifters | Giant RideControl Ergo 5 wireless |

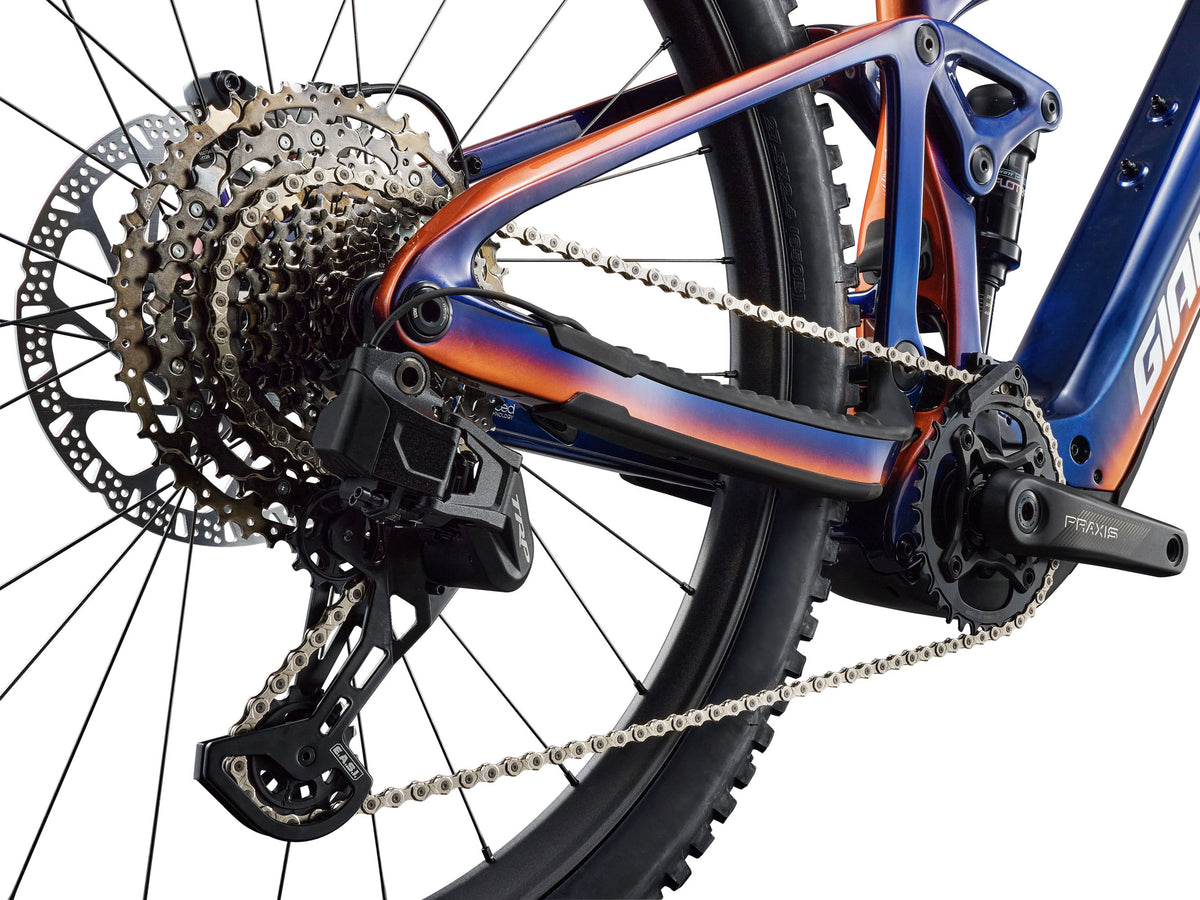

| Rear Derailleur | TRP Electronic RD, 10/11/12-speed compatible, TRD-002 |

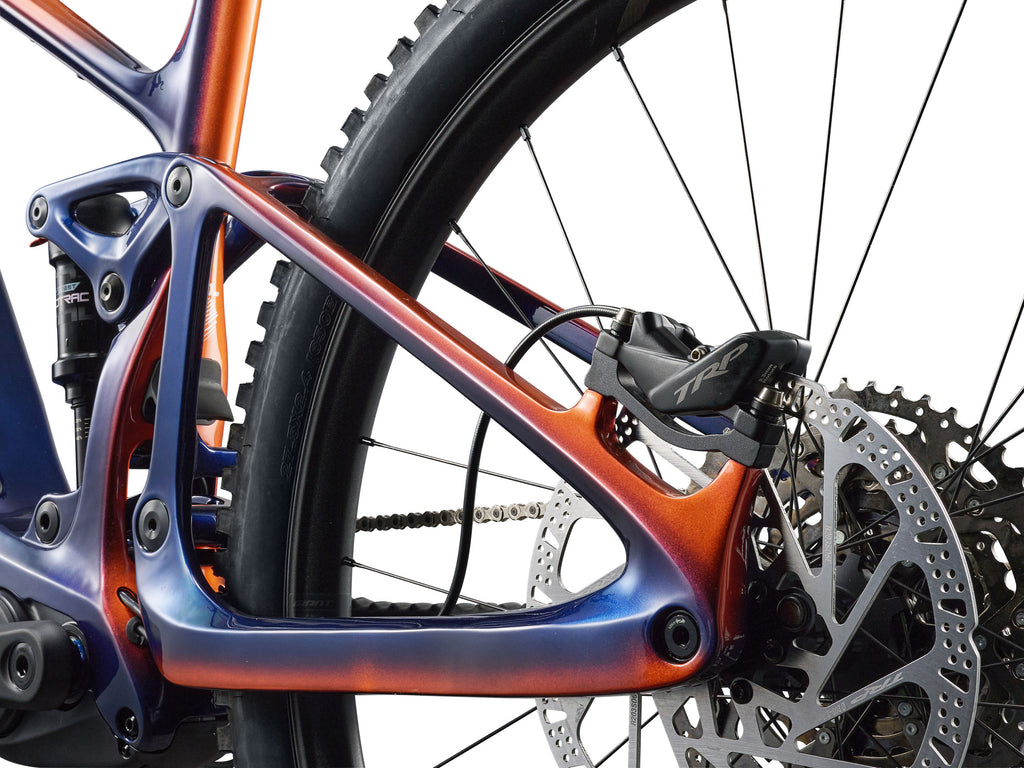

| Brakes | TRP EVO Comp, hydraulic disc, 4-piston, 220 mm [F] 203 mm [R] |
| Brake Levers | TRP EVO Comp |
| Cassette | Shimano LinkGlide, 11-speed, 11-50T |
| Chain | KMC eGlide, high-torque e-bike optimized chain 11-speed |
| Crankset | Praxis Type-2 alloy, 155 mm |
| Rims | Giant TRA HD, alloy, 30 mm inner width, Wide Guard Technology |
| Hubs | Giant TRA HD, E-Drive, titanium ratchet system, 72T engagement, 15 x 110 mm [F] 12 x 148 mm [R], e-bike optimized |
| Spokes | Giant TRA HD, Dynamic Balanced Lacing (D.B.L.) |
| Tyres | Maxxis Assegai 29 X 2.50-inch Foldable, TLR, EXO+, 3C MaxxGrip [F], Maxxis Minion DHR II 27.5 x 2.4-inch Foldable, TLR, EXO+, MaxxTerra [R] |
| Extras | Giant Aegis Tire Checker, included tire pressure management system (TPMS) Tubeless kit (liquid, valves, levers, manual, tool) |
| Lighting | Optional: Giant Recon series e-bike lights available and direct-connect compatible |
| Combined Maximum Load Limit | 156kg |
| Manufacturer quoted weight | 21.9kg (manufacturer reference; actual weight varies by size and specification) |
| Sizes | S, M, L, XL |
| Colours | Copper Flow |
| Drivetrain configuration | 1 x 11 |
| Wheel size for these variants | 29 / 27.5 |
Geometry
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | |
| Seat Tube Length (mm) | 400 | 425 | 450 | 475 |
| Seat Post Insertion Depth (mm) | 245 | 270 | 295 | 310 |
| Seat Tube Angle (degrees) | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° |
| Top Tube Length (mm) | 568 | 567 | 566 | 605 | 604 | 603 | 630 | 629 | 628 | 662 | 661 | 660 |
| Head Tube Length (mm) | 110 | 120 | 130 | 140 |
| Head Tube Angle (degrees) | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° |
| Fork Rake (mm) | 44 | 44 | 44 | 44 |
| Trail (mm) | 135.9 | 122 | 120 | 135.9 | 120 | 135.9 | 122 | 120 | 135.9 | 122 | 120 |
| Wheelbase (mm) | 1200 | 1199 | 1197 | 1239 | 1237 | 1236 | 1267 | 1265 | 1264 | 1300 | 1299 | 1298 |
| Chain Stay Length (mm) | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 |
| Bottom Bracket Drop (mm) | 17 | 12 | 7 | 17 | 12 | 7 | 17 | 12 | 7 | 17 | 12 | 7 |
| Stack (mm) | 634 | 631 | 629 | 643 | 640 | 638 | 652 | 649 | 647 | 661 | 659 | 658 |
| Reach (mm) | 422 | 425 | 428 | 457 | 460 | 463 | 477 | 480 | 484 | 504 | 510 | 513 |
| Handlebar Width (mm) | 800 | 800 | 800 | 800 |
| Stem Length (mm) | 40 | 40 | 40 | 40 |
| Crank Length (mm) | 155 | 155 | 155 | 155 |
| Wheel Size | F29"/R27.5" | F29"/R27.5" | F29"/R27.5" | F29"/R27.5" |
Measurements are in millimetres unless indicated otherwise.
Component dimensions and wheel configurations can vary by frame size. Refer to the size annotations in the specifications. Manufacturer specifications may change; confirm your chosen size and colour before ordering.
