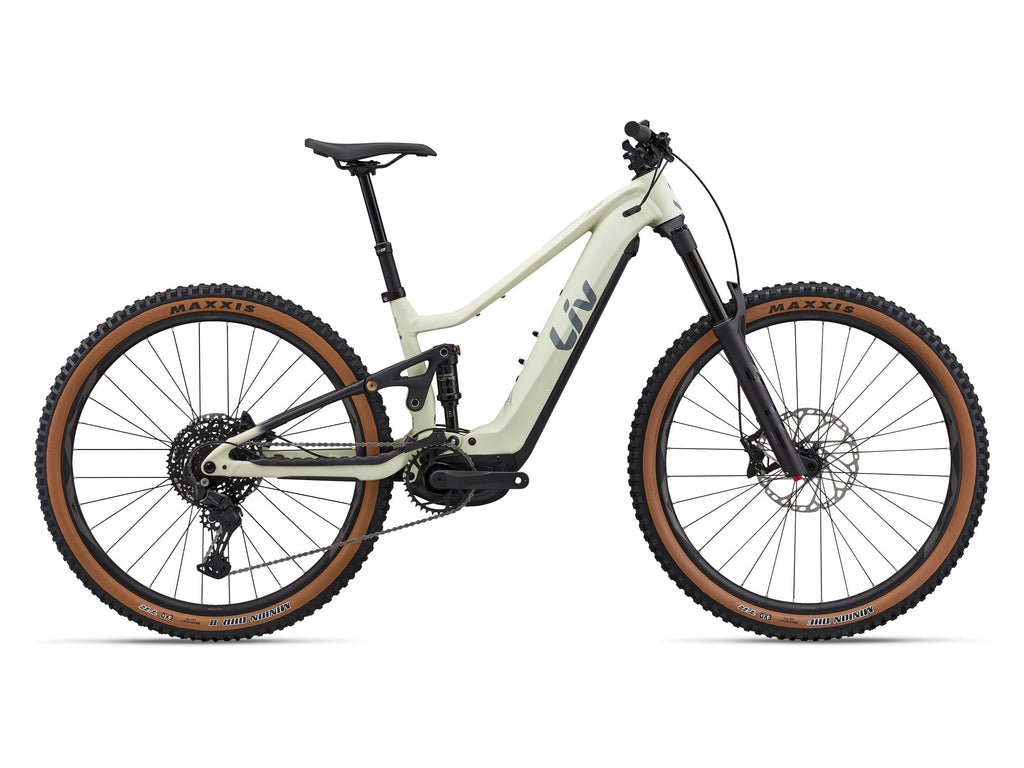

Liv Embolden E+ 1 2027
€4.799,00
Taxes included.
Product description
Liv Embolden E+ 1 2027 is an electric mountain bike. It features a aluminium frame. Hydraulic disc brakes are fitted. The drivetrain uses a 1 x 10 configuration. The electric system includes a 800 Wh battery. Choose from the listed sizes and colours at Scanlon Cycles.
Specifications
| Motor | Giant SyncDrive Pro 3X 100Nm, PedalPlus 6-Sensor technology |
|---|---|
| Controller | Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels |
| Display | Giant RideControl Dash 2, full color LCD display |
| Battery | Giant EnergyPak 800Wh |
| Charger | Giant EnergyPak 4A smart charger |
| Sizes | XS, S, M, L |
| Colours | Pale Moss/Black |
| Frame | ALUXX SL-grade aluminum, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDHTM Universal Derailleur hanger, KSA40 compatible, 185X52.5mm shock, 1.5~1.8" headset (ZS62/ZS72) |
| Fork | Giant STL 36 Air, 150mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible |
| Shock | Giant Crest FloTrac, 3-position lever, e-bike optimized, 185x52.5mm, Sag recommendation: 30% (15.75mm) |
| Handlebar | Giant Connect TR35, 20mm rise, 35x750mm [XS, S], 35X780mm [M, L] |
| Grips | Liv Tactal Pro Single Lock-On Grips |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch AT travel adjust dropper seatpost (XS, S: 110-140mm, M:140-170mm, L: 170-200mm) |
| Saddle | Liv Contact Ergo Trail |
| Pedals | Large platform pedal, 28-pins, PP cage, steel axle |
| Shifters | Shimano Cues LinkGlide |
| Rear Derailleur | Shimano Cues LinkGlide, 10-speed, Shadow+ |
| Brakes | Shimano Deore, BR-M420, hydraulic disc, 4-piston, 220mm [F], 203mm [R] |
| Brake Levers | Shimano Deore, BL-M401 |
| Cassette | Shimano Cues LinkGlide, 10-speed, 11-48T |
| Chain | Shimano LinkGlide |
| Crankset | Direct-mount steel 36T (maximum: 38T), Forged aluminum crank arms |
| Rims | Giant AM30, tubeless ready, 30mm inner width |
| Hubs | Shimano TC500 Boost, center-lock, 15x110mm [F], 12x148mm [R] |
| Spokes | Stainless steel |
| Tyres | Maxxis Minion DHF 27x2.5" (XS), 29x2.50" (S, M, L) foldable, TLR EXO [F}, Maxxis Dissector 27.5x2.4" (XS), 29x2.40" (S, M, L) foldable WT, TLR, EXO [R] |
| Extras | N/A |
| Lock | Torx 25 battery lock with built-in torque limiter |
| Fender/Chainguard | MRP 1x HD guide, CS e-Mount, 32~38T adjustable |
| Drivetrain configuration | 1 x 10 |
| Wheel size for these variants | 29 / 27.5 |
Geometry
| Measurement | XS | S | M | L |
|---|---|---|---|---|
| Seat Tube Angle (degrees) | 77.5° | 76.5° | 76.5° | 76.5° |
| Top Tube Length (mm) | 555 | 575 | 595 | 615 |
| Head Tube Length (mm) | 105 | 105 | 115 | 125 |
| Head Tube Angle (degrees) | 64.5° | 64.5° | 64.5° | 64.5° |
| Wheelbase (mm) | 1217 | 1226 | 1248 | 1270 |
| Chain Stay Length (mm) | 468 | 468 | 468 | 468 |
| Stack (mm) | 619 | 619 | 628 | 637 |
| Reach (mm) | 417 | 426 | 444 | 462 |
| Stand Over Height (mm) | 689 | 710 | 726 | 736 |
| Crank Length (mm) | 165 | 165 | 165 | 165 |
Measurements are in millimetres unless indicated otherwise.
Component dimensions and wheel configurations can vary by frame size. Refer to the size annotations in the specifications. Manufacturer specifications may change; confirm your chosen size and colour before ordering.
Additional information
- Bike Type — eBike
- Rider — Women
- Frame Material — Aluminium
- Suspension — Full Suspension
- Wheel Size — 29 / 27.5
- Brake Type — Hydraulic disc
- Motor — Giant
- Year — 2027
- Colour — XS
