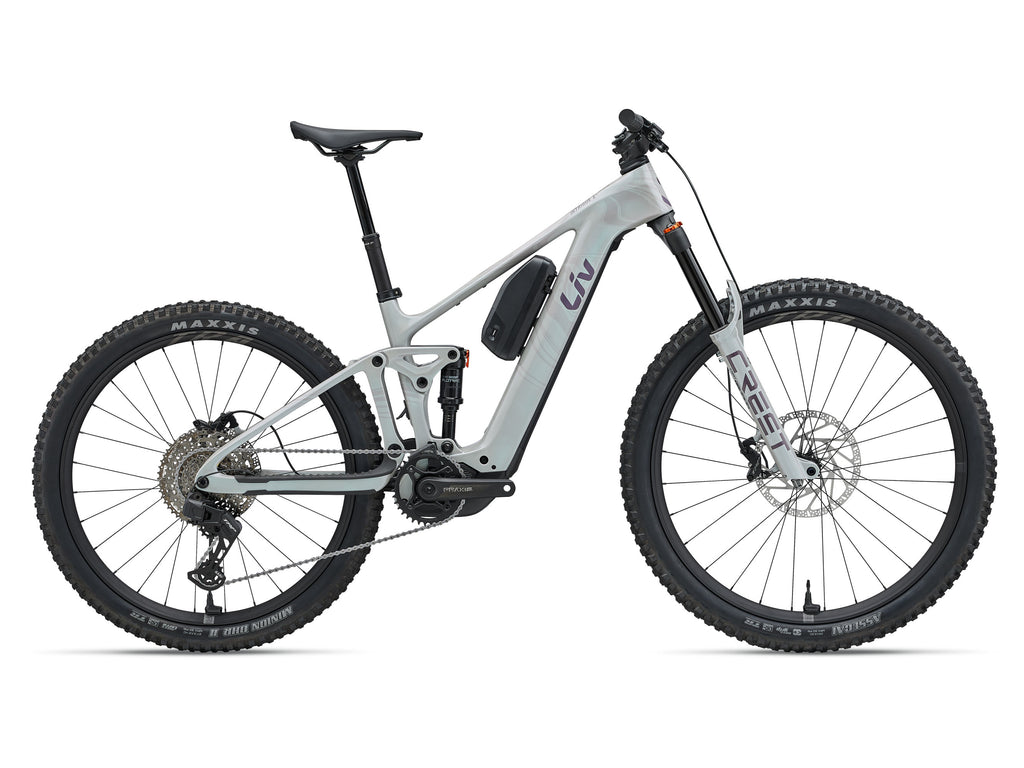

Liv Intrigue Advanced E+ SE 2027
€7.199,00
Taxes included.
Product description

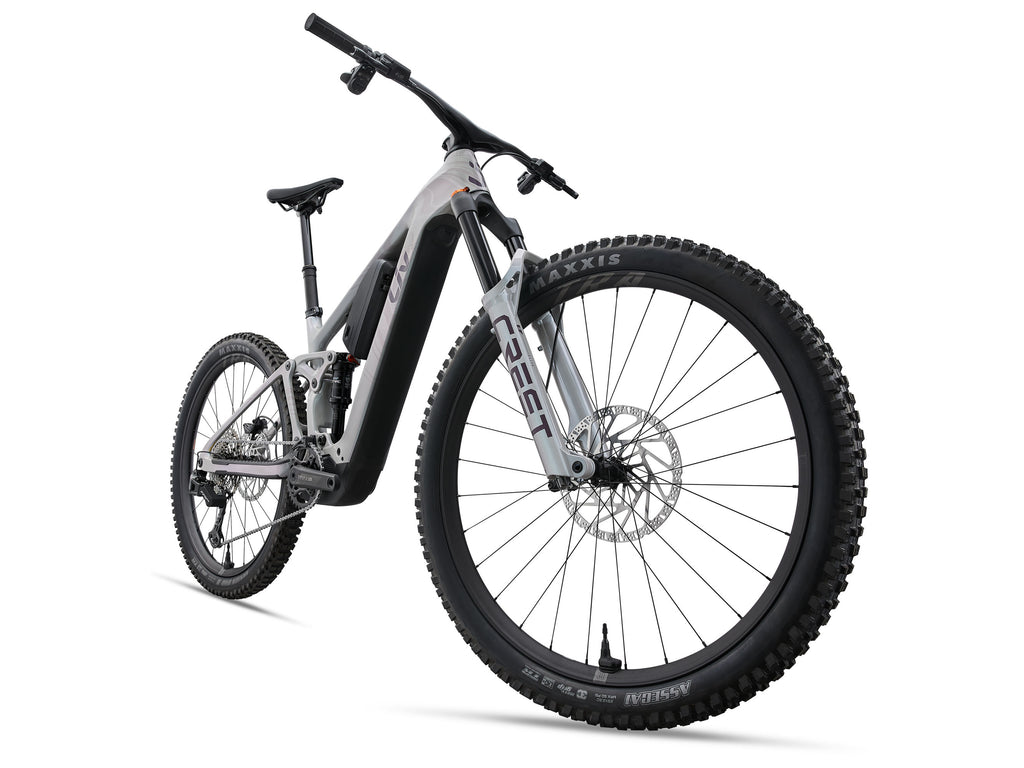

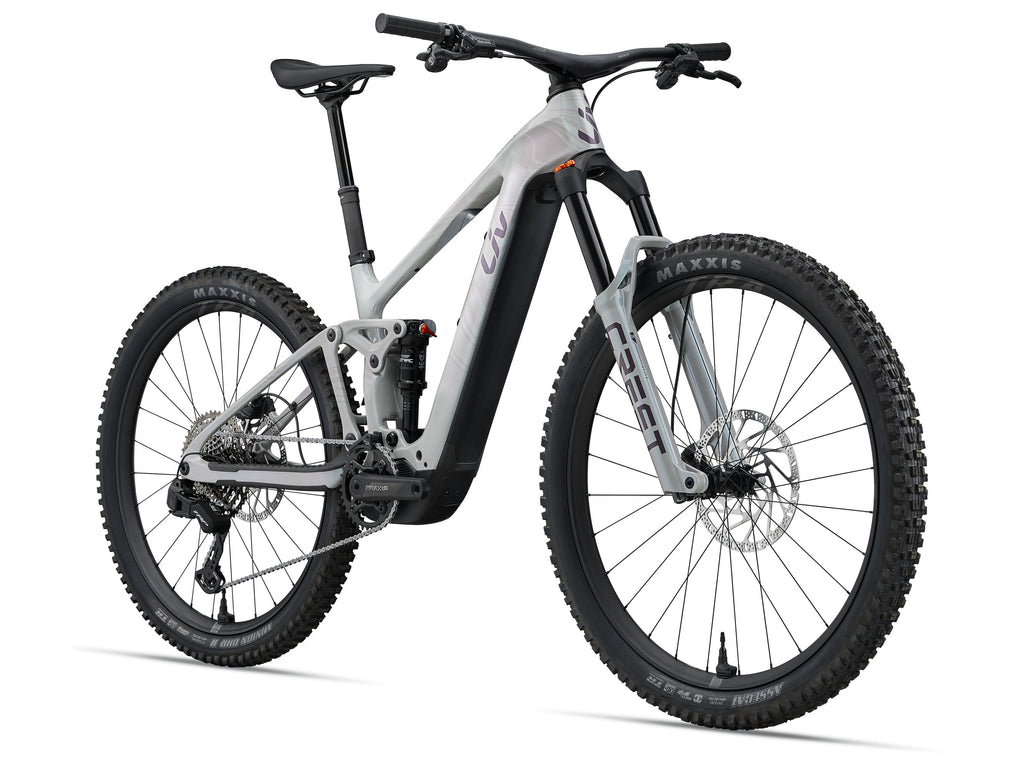

Liv Intrigue Advanced E+ SE 2027 is an electric mountain bike. It features a carbon frame. Hydraulic disc brakes are fitted. The drivetrain uses a 1 x 11 configuration. The electric system includes a 560 Wh battery. Choose from the listed sizes and colours at Scanlon Cycles.
Specifications

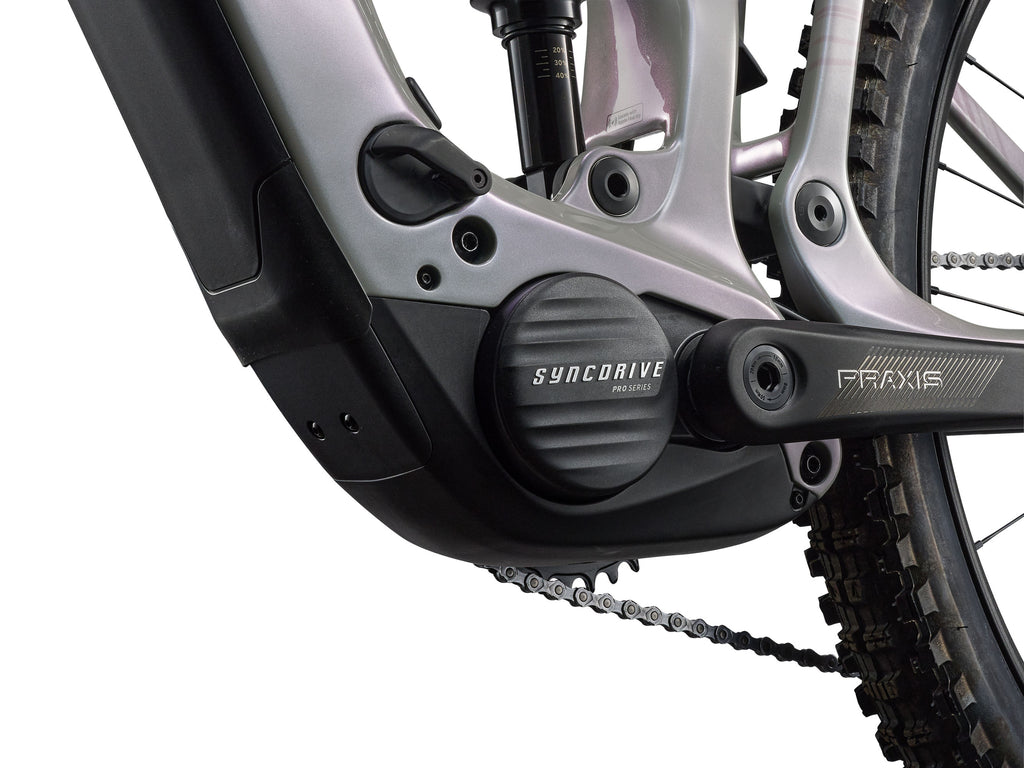

| Motor | Giant SyncDrive Pro 4, 120 Nm, 48 V, 850 W peak power |
|---|---|
| Controller | Giant RideControl Ergo 5 wireless, Integrated E+ System & seatpost remote |
| Display | Giant RideControl Go Lux |
| Battery | Giant EnergyPak Smart 560X, 560 Wh, 48 V and Giant EnergyPak Plus 280 Wh range extender |
| Charger | Giant Smart Charger X, 48 V 4A |
| Sizes | XS, S, M, L |
| Colours | Fog Marble Drift |

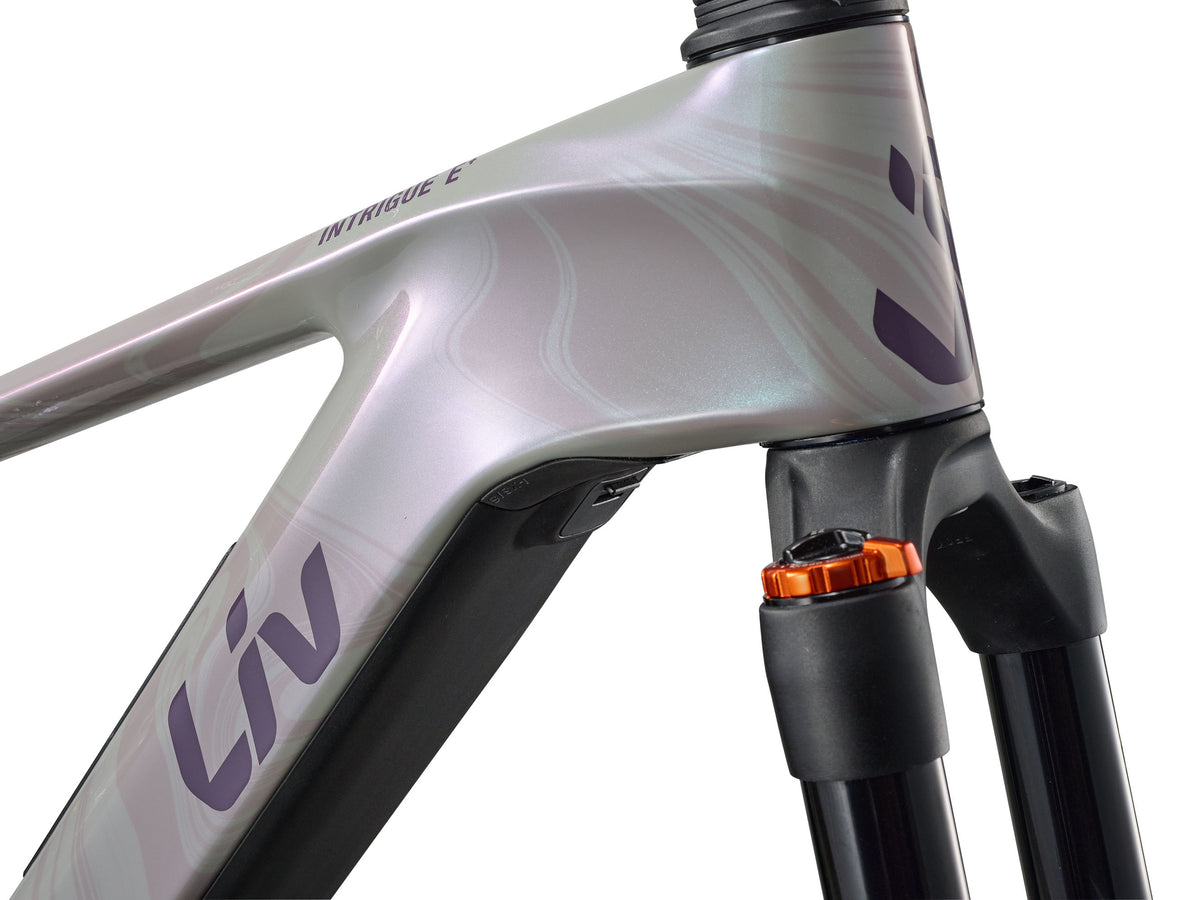

| Frame | Advanced-grade composite frame, Advanced Forged Composite upper rocker, 150mm Maestro suspension system, 3-position flip chip adjustable geometry, 148 mm BOOST hub spacing, ZS66/ZS66 headset compatible |

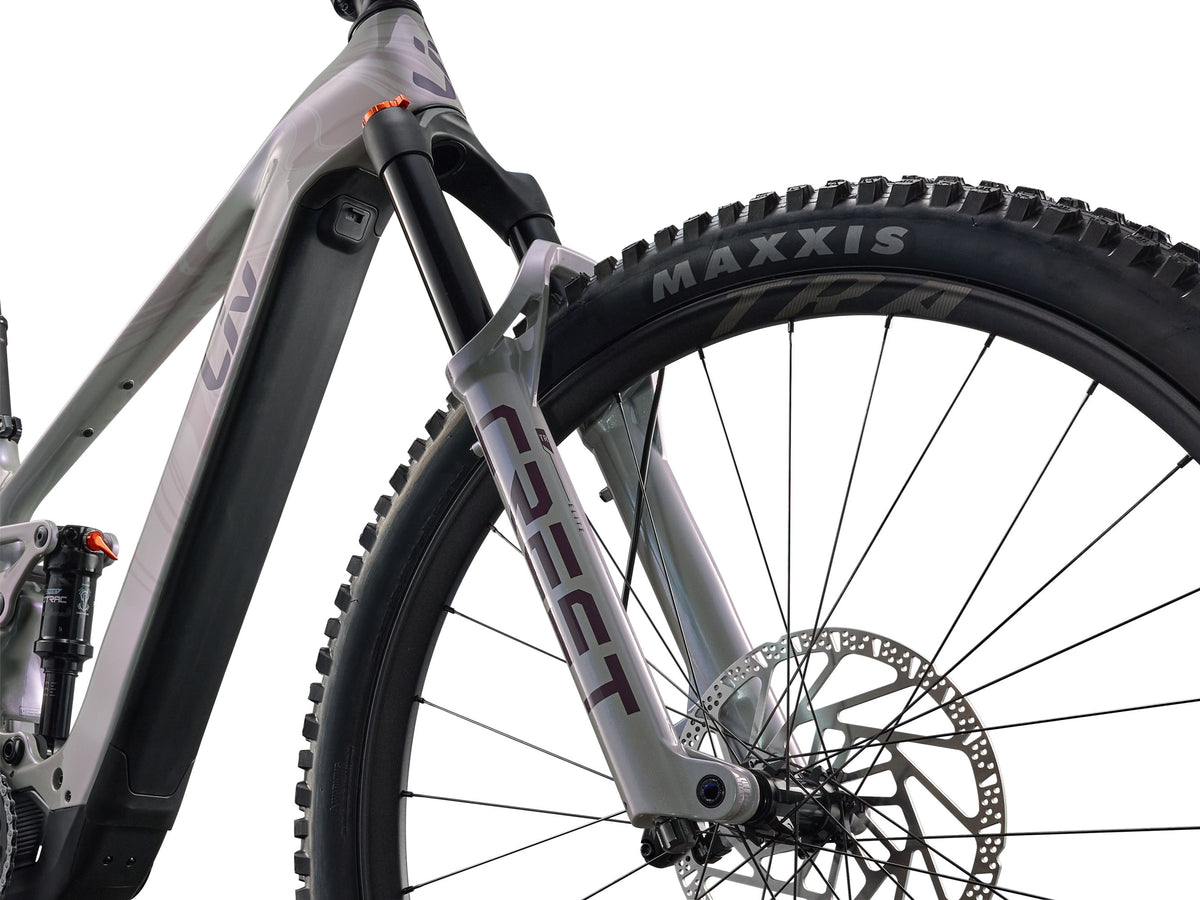

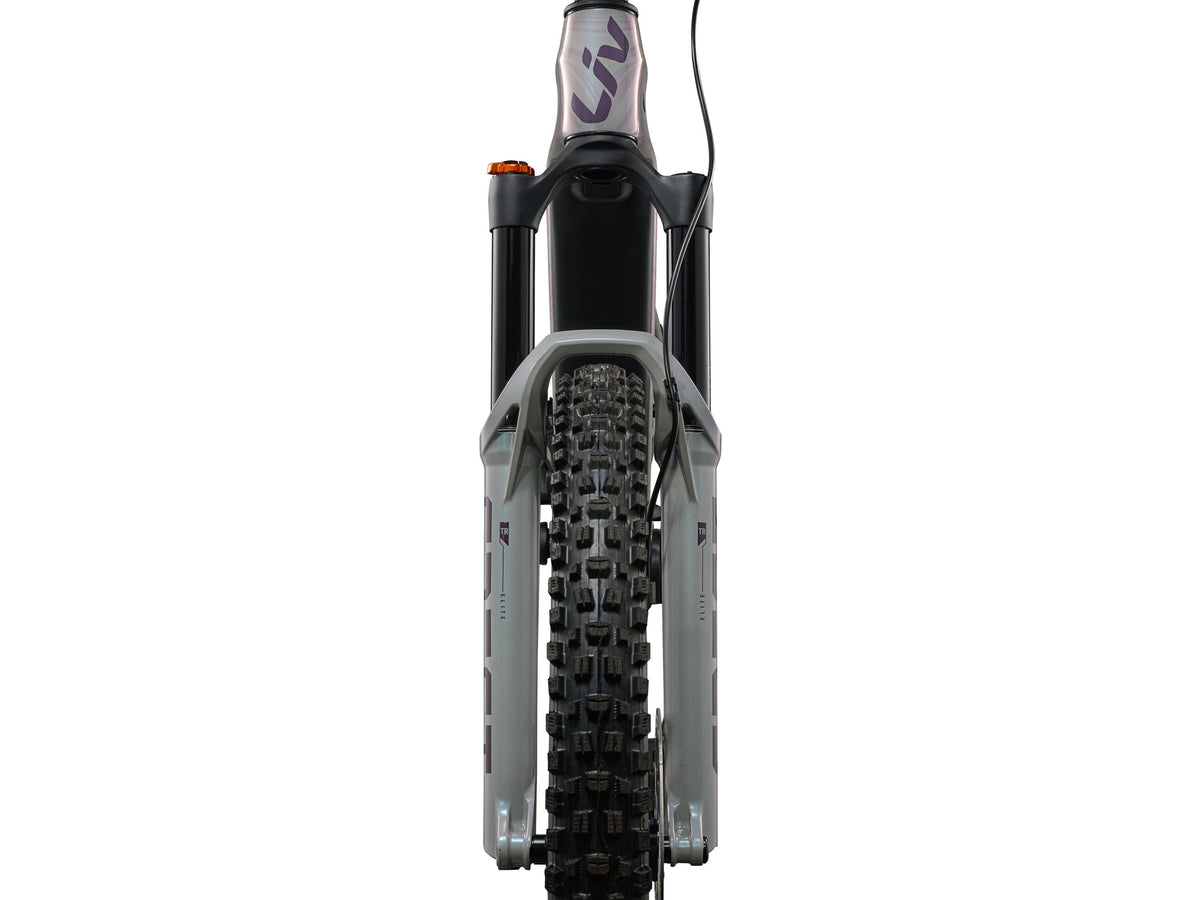

| Fork | CREST TR Elite E-tuned, 160mm, Dual Air, Elite damper |

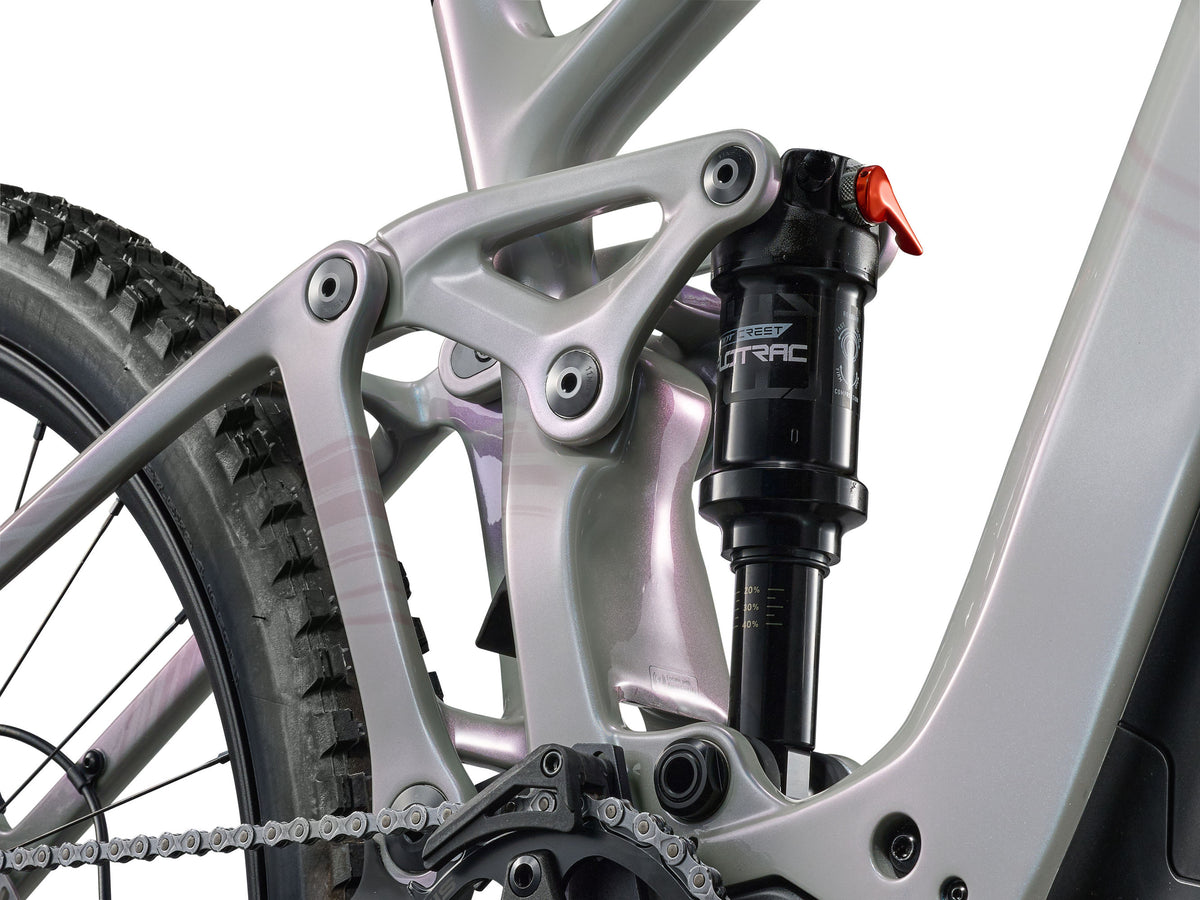

| Shock | CREST Flotrac TR E-tuned, 185 x 55 mm, custom tuned, recommended sag 30% |

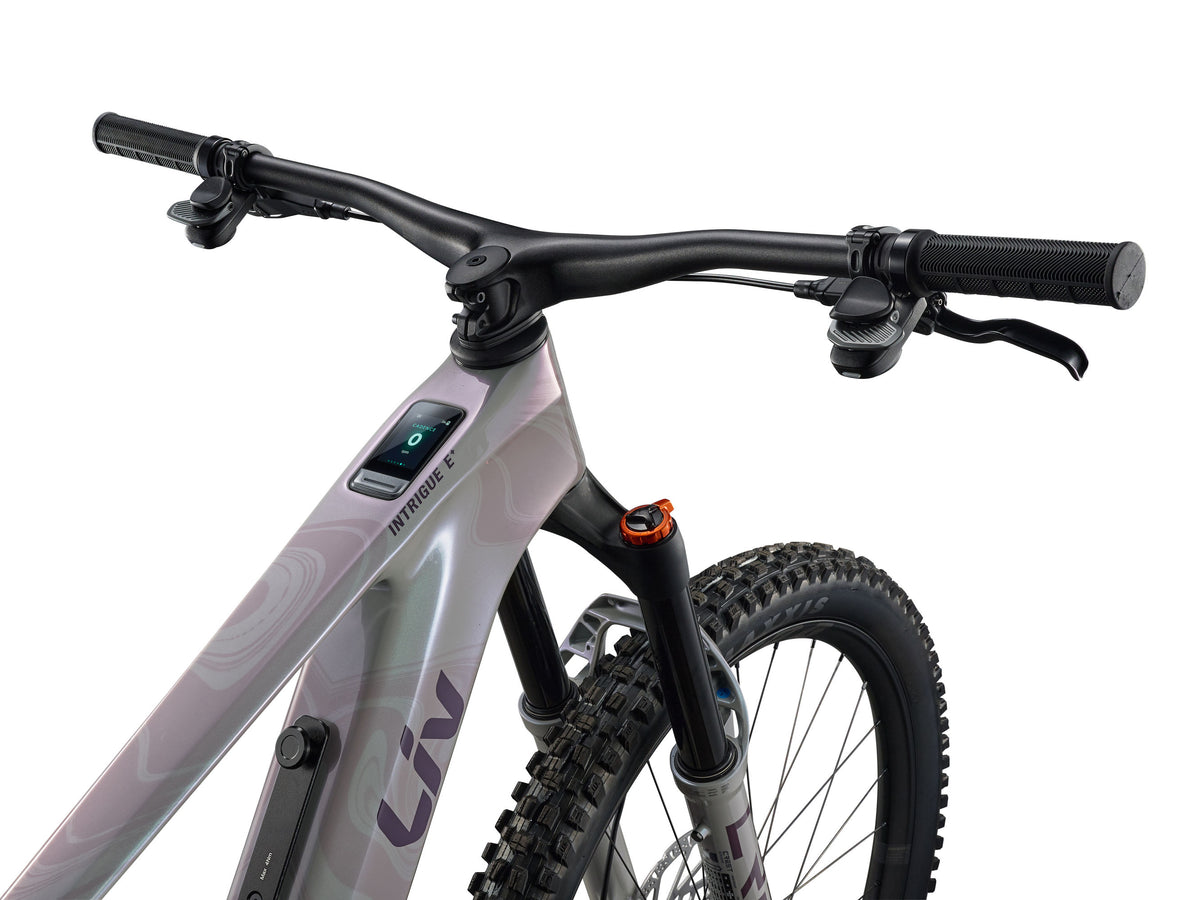

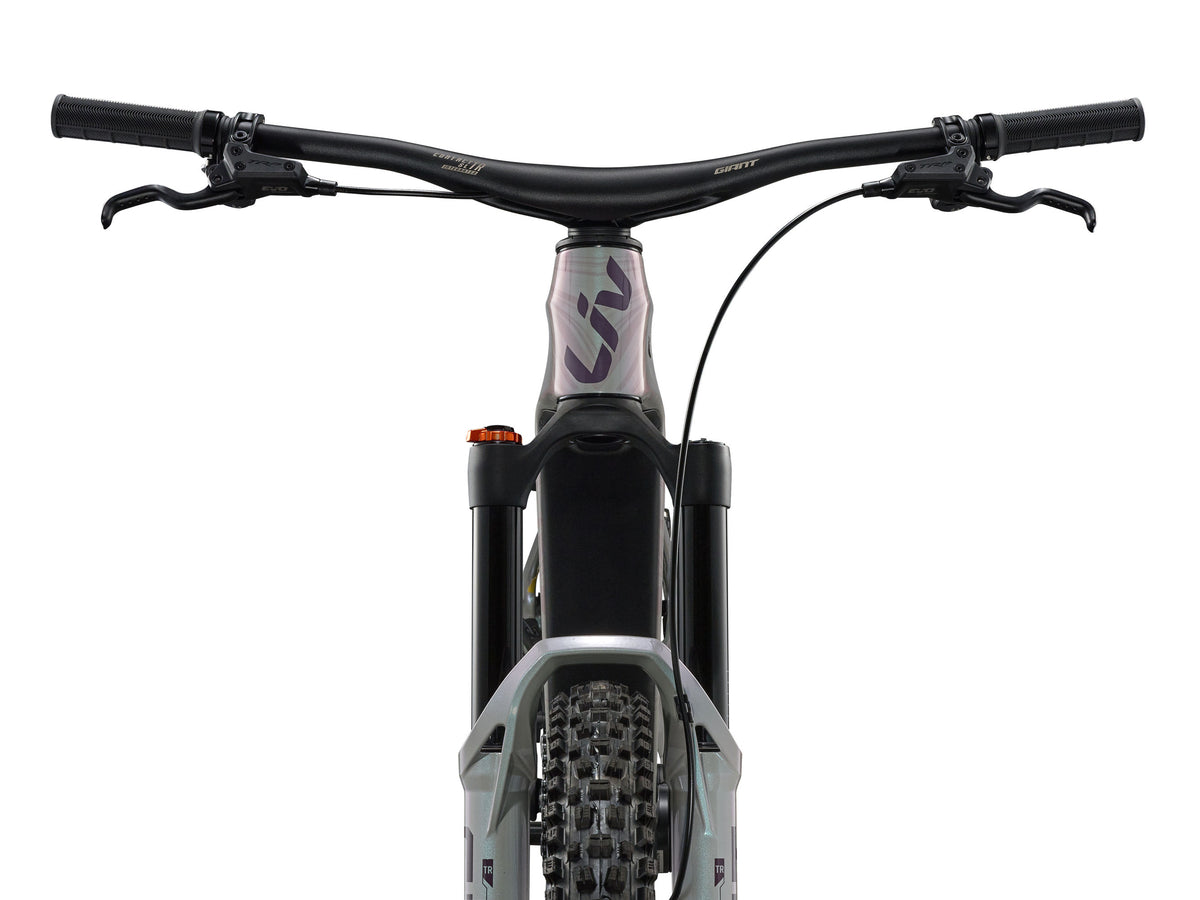

| Handlebar | Giant Contact SL Trail Integrated, 27mm rise, Up: 5⁰ Back: 8⁰, XS & S: 760 mm, M & L: 780 mm |
| Grips | Liv Tactal Pro |
| Stem | Giant Contact SL Trail Integrated, 40 mm |
| Seatpost | Giant Contact Switch E+, 30.9 mm, electronic dropper post |
| Saddle | Liv Sylvia HD |
| Shifters | Giant RideControl Ergo 5 wireless |

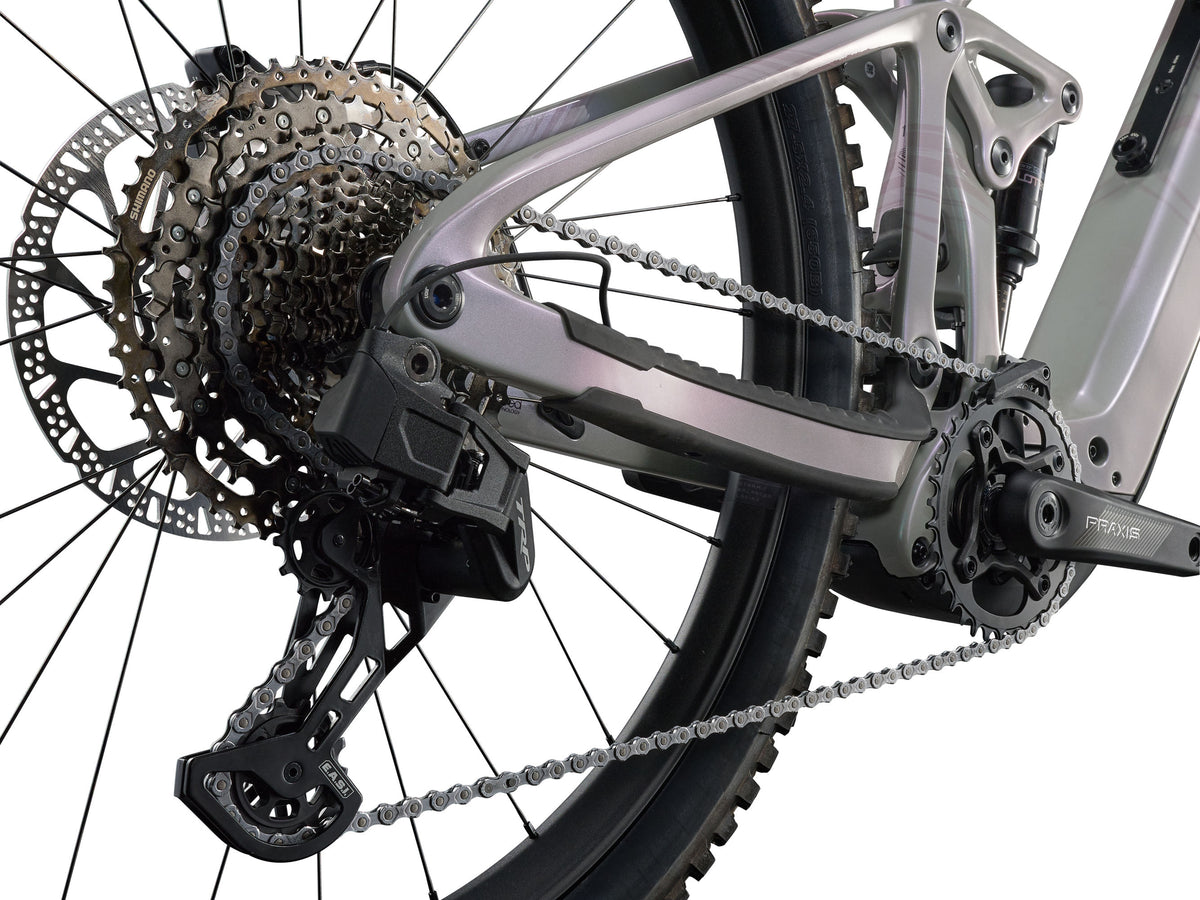

| Rear Derailleur | TRP Electronic RD, 10/11/12-speed compatible, TRD-002 |

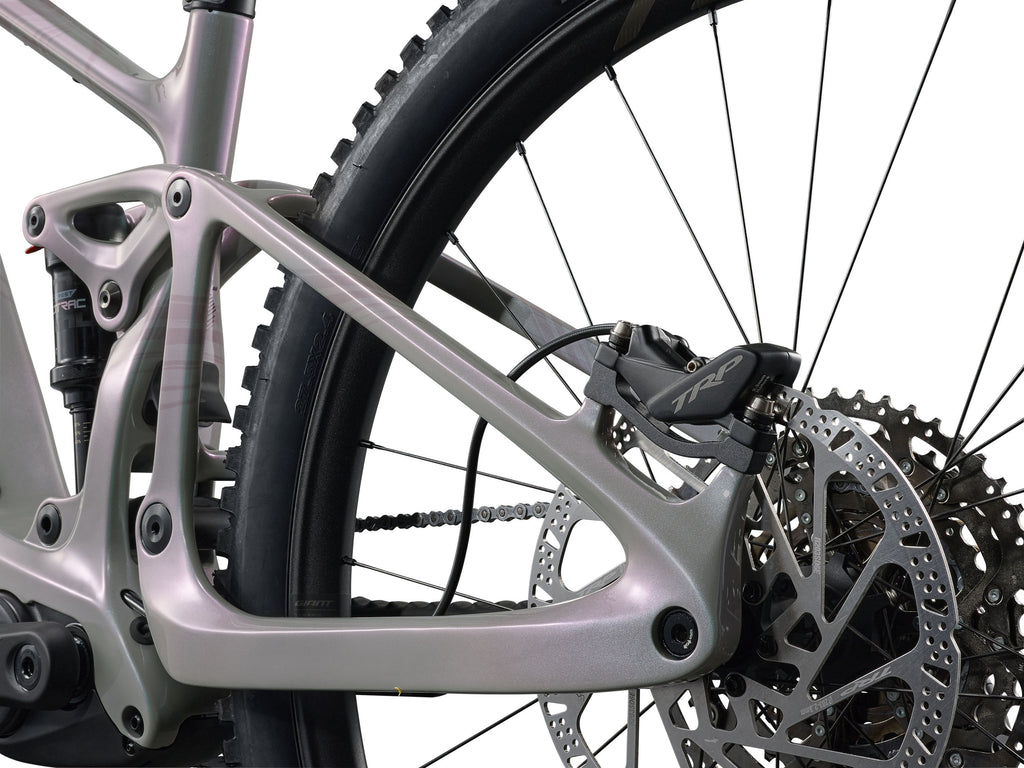

| Brakes | TRP EVO Comp, hydraulic disc, 4-piston, 220 mm [F] 203 mm [R] |
| Brake Levers | TRP EVO Comp |
| Cassette | Shimano LinkGlide, 11-speed, 11-50T |
| Chain | KMC eGlide, high-torque e-bike optimized chain 11-speed |
| Crankset | Praxis Type-2 alloy, 155 mm |
| Rims | Giant TRA HD, alloy, 30 mm inner width, Wide Guard Technology |
| Hubs | Giant TRA HD, E-Drive, titanium ratchet system, 72T engagement, 15 x 110 mm [F] 12 x 148 mm [R], e-bike optimized |
| Spokes | Giant TRA HD, Dynamic Balanced Lacing (D.B.L.) |
| Tyres | Maxxis Assegai 29 X 2.50-inch Foldable, TLR, EXO+, 3C MaxxGrip [F], Maxxis Minion DHR II 27.5 x 2.4-inch Foldable, TLR, EXO+, MaxxTerra [R] |
| Extras | Giant Aegis Tire Checker, included tire pressure management system (TPMS) Tubeless kit (liquid, valves, levers, manual, tool) |
| Lighting | Optional: Giant Recon series e-bike lights available and direct-connect compatible |
| Combined Maximum Load Limit | 156kg |
| Manufacturer quoted weight | 20.6kg (manufacturer reference; actual weight varies by size and specification) |
| Drivetrain configuration | 1 x 11 |
| Wheel size for these variants | 29 / 27.5 |
Geometry
| Measurement | XS | S | M | L |
|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | |
| Seat Tube Length (mm) | 380 | 400 | 425 | 450 |
| Seat Post Insertion Depth (mm) | 225 | 245 | 270 | 290 |
| Seat Tube Angle (degrees) | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° | 76.6° | 77.0° | 77.4° |
| Top Tube Length (mm) | 552 | 550 | 548 | 565 | 563 | 561 | 598 | 596 | 594 | 625 | 623 | 621 |
| Head Tube Length (mm) | 95 | 105 | 115 | 125 |
| Head Tube Angle (degrees) | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° | 64.1° | 64.5° | 64.9° |
| Fork Rake (mm) | 44 | 44 | 44 | 44 |
| Trail (mm) | 125.4 | 122.5 | 119.6 | 125.4 | 122.5 | 119.6 | 125.4 | 122.5 | 119.6 | 125.4 | 122.5 | 119.6 |
| Wheelbase (mm) | 1184 | 1183 | 1182 | 1199 | 1198 | 1197 | 1232 | 1231 | 1230 | 1264 | 1260 | 1262 |
| Chain Stay Length (mm) | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 | 443 |
| Bottom Bracket Drop (mm) | 17 | 12 | 7 | 17 | 12 | 7 | 17 | 12 | 7 | 17 | 12 | 7 |
| Stack (mm) | 620 | 618 | 615 | 629 | 627 | 624 | 638 | 636 | 633 | 647 | 645 | 642 |
| Reach (mm) | 409 | 412 | 415 | 420 | 423 | 426 | 448 | 452 | 455 | 476 | 477 | 482 |
| Stand Over Height (mm) | 722 | 727 | 732 | 730 | 735 | 740 | 730 | 735 | 740 | 727 | 732 | 737 |
| Handlebar Width (mm) | 760 | 760 | 780 | 780 |
| Stem Length (mm) | 40 | 40 | 40 | 40 |
| Crank Length (mm) | 155 | 155 | 155 | 155 |
| Wheel Size | F29"/R27.5" | F29"/R27.5" | F29"/R27.5" | F29"/R27.5" |
Measurements are in millimetres unless indicated otherwise.
Component dimensions and wheel configurations can vary by frame size. Refer to the size annotations in the specifications. Manufacturer specifications may change; confirm your chosen size and colour before ordering.
Additional information
- Bike Type — eBike
- Rider — Women
- Frame Material — Carbon
- Suspension — Full Suspension
- Wheel Size — 29 / 27.5
- Brake Type — Hydraulic disc
- Motor — Giant
- Year — 2027
- Colour — XS
